Audio-Technica ATW-1101/H System 10 Digital Wireless System

Share

Audio-Technica's System 10 is a digital high-fidelity wireless system designed to provide performing musicians and presenters with advanced 24-bit operation, easy setup and clear, natural sound quality. Operating in the 2.4 GHz range, far from TV and DTV interference, System 10 offers extremely easy operation and instantaneous channel selection. Up to eight channels may be used together without any frequency coordination problems or group selection issues. System 10 receivers and transmitters offer an easy-to-read digital ID display.

System 10 wireless ensures clear communications by providing three levels of diversity assurance: frequency, time, and space. Frequency Diversity sends the signal on two dynamically allocated frequencies for interference-free communication. Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference. Finally, Space Diversity uses two antennas on each transmitter and receiver to maximize signal integrity.

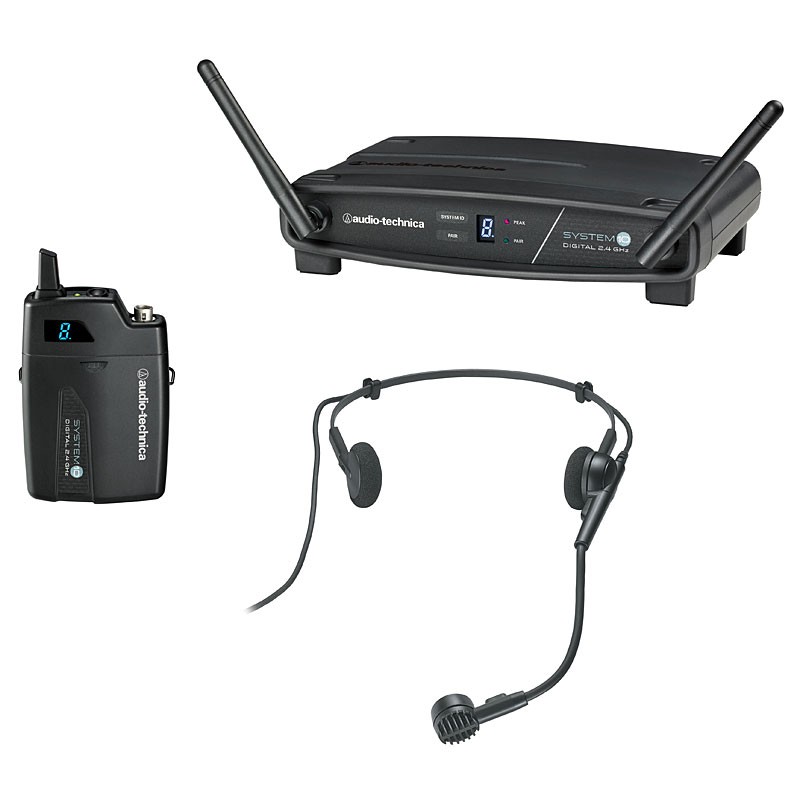

Featuring stackable, contemporary styling, the ATW-1101/H configuration includes the ATW-R1100 digital receiver offering volume control along with AF Peak and Pair indicator lights, and ATW-T1001 UniPak® bodypack transmitter with PRO 8HEcW headworn microphone.

Features:

• Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
• 2.4 GHz range - completely free from TV interference
• Three levels of diversity assurance: frequency, time, and space
• Automatic frequency selection for seamless, interference-free operation
• Extremely easy operation with instantaneous channel selection, sync, and set-up
• State-of-the-art digital receiver for reliable performance
• Balanced XLR and unbalanced 1/4" output jacks with level control



• System Specifications:
  • Operating Frequencies: 2.4 GHz ISM band
  • Dynamic Range: > 109 dB (A-weighted), typical
  • Total Harmonic Distortion: < 0.05% typical
  • Operating Range: 100 ft | 30 m typical
    Open range environment with no interfering signals
  • Operating Temperature Range: 32 to 104 °F | 0 to 40 °C
    Battery performance may be reduced at very low temperatures
  • Frequency Response: 20 Hz to 20 kHz
    Depending on microphone type
• ATW-R1100 Digital Receiver:
  • Receiving System: Diversity (frequency/time/space)
  • Maximum Output Level:
    • XLR, Balanced: 0 dBV
    • 1/4" (6.3 mm), Unbalanced: +6 dBV
  • Power Supply: 100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply
  • Dimensions (W x H x D): 7.48 x 1.82 x 5.06 in | 190 x 46.2 x 128.5 mm
  • Weight: 10.2 oz | 290 g
• ATW-T1001 UniPak® Bodypack Transmitter:
  • RF Power Output: 10 mW
  • Spurious Emissions: Following federal and national regulations
  • 4-Pin Locking Connector:
    • Pin 1: GND
    • Pin 2: INST INPUT
    • Pin 3: MIC INPUT
    • Pin 4: DC BIAS +9V
  • Batteries: (2) 1.5V AA (not included)
  • Battery Life: > 7 hours (alkaline) depending on battery type and use pattern
  • Dimensions (W x H x D): 2.76 x 4.21 x .98 in | 70.2 x 107 x 24.9 mm
  • Weight: 3.5 oz | 100 g
• PRO 8HEcW Headworn Microphone:
  • Element: Dynamic
  • Polar Pattern: Hypercardioid
  • Frequency Response: 200 to 18,000 Hz
  • Open Circuit sensitivity: -55 dB (1.7 mV) re 1V @ 1 Pa
  • Impedance: 600 Ω
  • Accessory Furnished: Windscreen
  • Cable: 55 in | 1.4 m
  • Output Connector: locking 4-pin connector for use with Audio-Technica UniPak® bodypack transmitters
  • Dimensions:
    • Headset: 4.72" | 120 mm nominal at widest point; 3.17" | 80.5 mm flexible boom
    • Microphone: 0.80" | 20.4 mm diameter
  • Weight: 2.2 oz | 62 g
