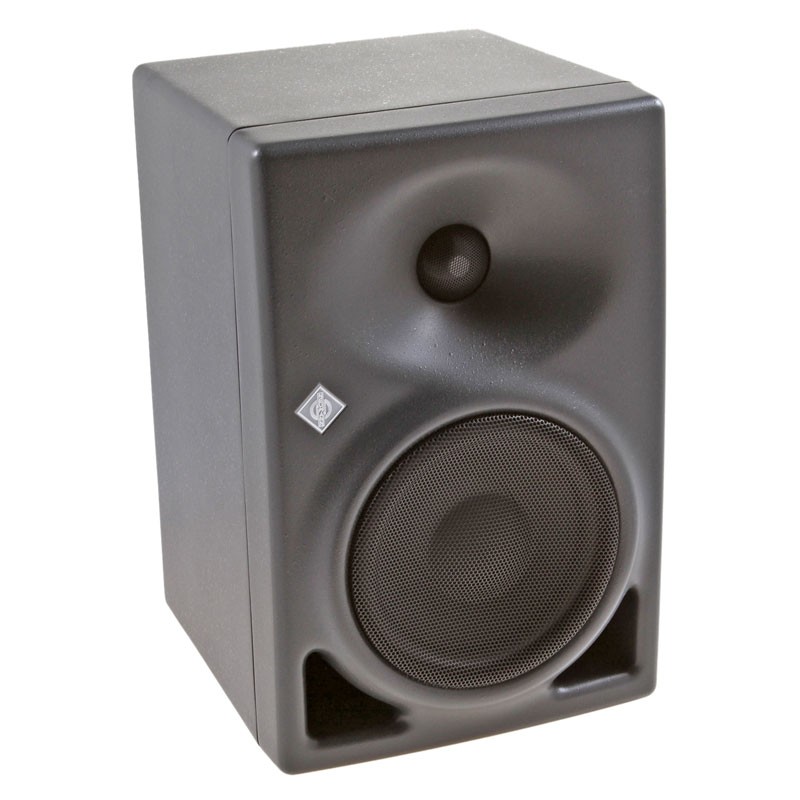

Neumann KH 120 A G 5.25 Inch 2-Way Active Studio Monitor, Anthracite (Silver)

Share

NOTE: Price shown is for a single unit.

The KH 120 A studio monitor is designed for use as a near-field loudspeaker or as a rear loudspeaker in larger multi-channel systems. The KH 120 A represents the latest in acoustic and electronic simulation and measurement technologies to ensure the most accurate sound reproduction possible. It has a Mathematically Modeled Dispersion waveguide (MMD (TM), flexible acoustical controls, analog class-AB amplifiers, a large headroom analog input and an extensive mounting hardware range. All of this provides the user with the maximum versatility over a wide variety of acoustic conditions, source equipment, and physical locations.

The KH 120 is perfect for tracking, mixing and mastering in music, broadcast, project and post-production studios.

• Acoustics:
  • -3 dB Free Field Frequency Response: 52 Hz to 21 kHz, ± 3 dB
  • Pass Band Free Field Frequency Response: 54 Hz to 20 kHz, ± 2 dB
  • Self-Generated Moise (with input gain set to 100 dB for 0 dBu): < 20 dB(A) at 10 cm
  • Total Harmonic Distortion < 0.5 % at 95 dB SPL at 1 m: > 100 Hz
  • Max. SPL In Full Space / Calc. In Half Space at 3% THD at 1m: 105.1 / 111.1 dB SPL (averaged between 100 Hz and 6 kHz)
  • Bass Capability: Max. SPL In Half Space at 3% THD at 1m: 104.8 dB SPL (averaged between 50 Hz and 100 Hz)
  • Max. Short Term SPL with IEC-Weighted Noise (IEC 60286-5) at 1 m, In Typical Listening Conditions: 107 dB(C) SPL
  • Max. Short Term SPL with Music Material at 2.3 m, In Typical Listening Conditions (pair): 97 dB(C) SPL (full range); 104 dB(C) SPL (with subwoofer)
  • Max. Long Term SPL with Pink Noise at 2.3 m, In Typical Listening Conditions (single/pair): 88 / 93 dB(C) SPL (full range); 89 / 94 dB(C) SPL (with subwoofer)
• Electronics:
  • Woofer Amplifier, Cont. (Peak) Output Power*: 50 W (80 W)
  • Tweeter Amplifier, Cont.(Peak) Output Power*: 50 W (80 W)
  • Controller Design: Analog, active
  • Crossover Frequency: 2.0 kHz
  • Crossover Slope (dB/oct.): 24, 4th order

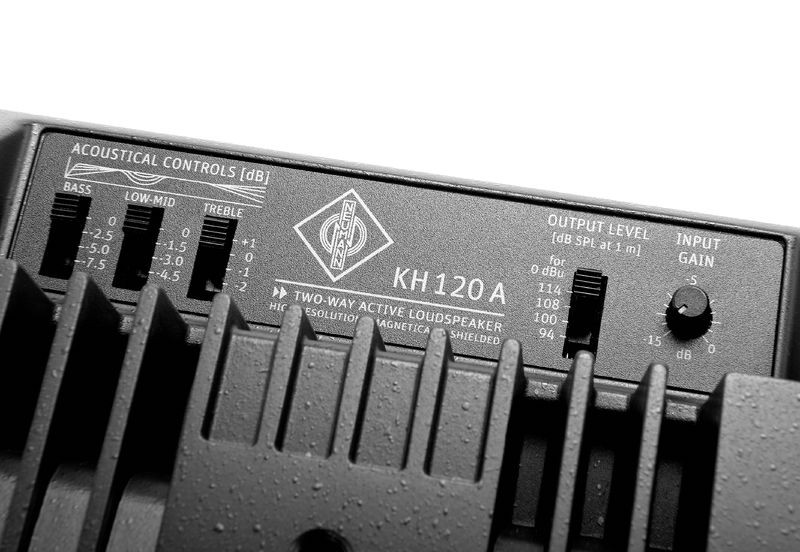

  • Acoustical Controls:
    • Bass: 0, -2.5, -5, -7.5 dB
    • Low-Mid: 0, -1.5, -3, -4.5 dB
    • Treble: +1, 0, -1, -2 dB
  • Protection Circuitry: Limiter: low, high
  • Infrasonic Filter Frequency; Slope: 30 Hz; 6 dB/oct.

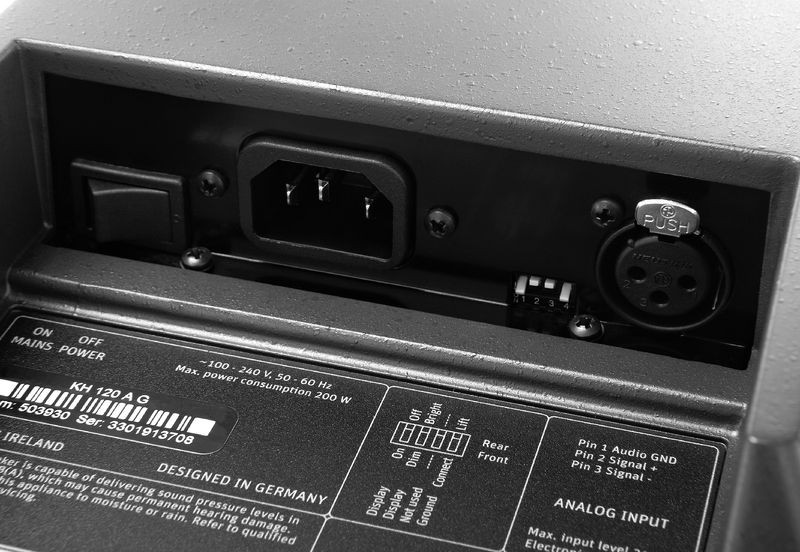

• Analog Input:
  • Input Type: XLR, electronically balanced
  • Impedance (depending on the position of the output level control ("OUTPUT LEVEL"):
    • 114 dB SPL | 20 kΩ
    • 108 dB SPL | 10 kΩ
    • 100 dB SPL | 20 kΩ
    • 94 dB SPL | 10 kΩ
  • Input Gain Control (Sensitivity): 0 dBu to -15 dBu
  • Output Level Control: 94, 100, 108, 114 dB SPL
  • CMRR: >56 dB @ 15 kHz
  • Maximum Input Level: 24 dBu
  • Displays & Indicators:
    • Power On - Neumann logo "White"
    • Limit Clip - Neumann logo "Red"
  • Mains Power Supply, Voltage; Frequency: 100-240 V~; 50/60 Hz
  • Power Consumption:
    • Idle, 20W
    • Full Output AC, 200 W
• Mechanics:
  • Cabinet Surface Finish, Color: Painted Aluminium, Anthracite Gray
  • Operating Conditions: +50° F to +104° F | +10° C to +40° C, < 90% RH, non-condensing
  • Transport/Storage Conditions: -13° F to 158° F | -25° C to +70° C, < 90% RH, non-condensing
  • Drivers: Magnetically shielded
  • Woofer: 5.25 in | 130 mm
  • Tweeter: 1 in | 25 mm

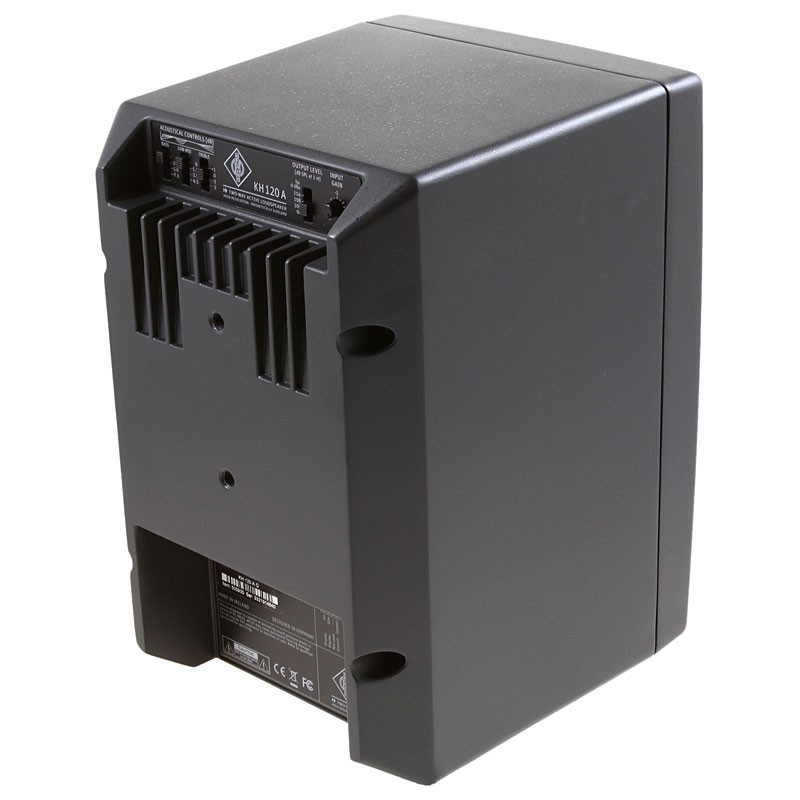

  • Mounting Points: 2 x M8 on rear panel
  • Dimensions (H x W x D): 10 7/8 x 7 1/8 x 8 5/8 in | 277 x 182 x 220 mm
  • Weight: 14.1 lbs | 6.4 kg
