Yamaha DM3S Standard Professional 22-Channel Ultracompact Digital Mixer

Share

The Yamaha DM3S is an ultra-compact 22-channel digital mixer sure to get you your next gig.

The word "compact" is often associated with limitations, and in the sound reinforcement world, often implies compromises in functionality, connectivity, or sound quality, and sometimes all three. Until now, choosing a compact console has almost invariably been a matter of what you're willing to sacrifice to get the capabilities you need in the space you have. The DM3 series of mixing consoles shatters this stereotype, offering superb sound quality, fast and easy setup and operation, and professional-level features for live sound, streaming, and live or home recording and music production—a combination unmatched in any other mixing console this size. In an ever-changing world that constantly presents new challenges as well as opportunities, DM3 mixing consoles give you the power and flexibility to do more than you ever imagined with a compact digital console.

Capable of 96kHz sample rates, the DM3 Series continues the Yamaha legacy of sonic purity, offering you the perfect canvas for mixing, recording, and streaming from a company that knows how to create music. When not on stage, DM3S can be used as a DAW controller in the home studio. Built to make mixing easy the console encourages the engineer to focus on the music, utilizing a best-in-class 9" touchscreen, and a single Touch & Turn knob for managing most of the operation.

Yamaha DM3S Digital Mixer - Features:

• Renowned Yamaha sound quality with 96kHz sample rate
• 22 Channels (16 Mono / 1 ST / 2 ST FX RTNs)
• 6 Mono or 3 ST Mixes / 2 Matrixes / 1 ST Bus
• 16 Professional Yamaha Pre-Amps (12x XLR + 4x Como Jack)
• 8 Analog Outpus (XLR)
• 18x18 USB Audio Interface for playback and recording and 2x2 USB recorder
• Best in Class 9" Touch Screen
• DAW Remote Mode including transport control
• Custom control via OSC, USB-MIDI and Provisionaire
• Bundled with Cubase Al

• Mixing Capacity:
  • Input Channels: 16 Mono, 1 Stereo, 2 FX Return
  • Buses: 1 Stereo, 6 Mix, 2 FX, 2 Matrix (Input to Matrix supported)

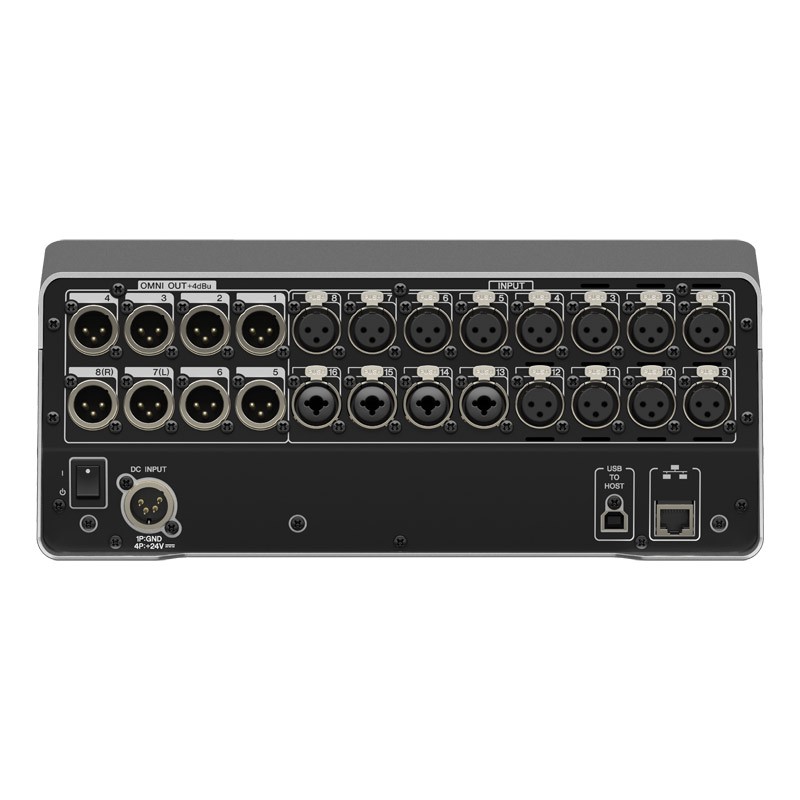

• Local Connectors:
  • Analog In: 16 Mic/Line (12 XLR + 4 XLR/TRS Phones Combo)
  • Analog Out: 8 (XLR)
  • Ethernet: 1 (RJ-45)
  • USB to Host: 1 (USB Type-B)
  • USB to Device: 1 (USB Type-A)
  • Phones: 1 (TRS Phones)
  • DC IN: 1 (XLR 4pin)
• User Interface:
  • 9-inch multi-touch screen
  • 9 x 100mm Motorized fader (8 channels + 1 master)
  • 1 x Rotary Encoder (Touch and Turn)
• Recording & Playback:
  • PC (via USB to Host) (USB 2.0): Recording 18 track, Playback 18 track
  • USB Storage Device: Recording 2 track, Playback 2 track
• Temperature Range:
  • Operating: 32 to 104° F | 0 to 40° C
  • Storage: -4 to 140° F | -20 to 60° C
• Software: DM3 Editor, DM3 StageMix, MonitorMix, ProVisionaire Control/Touch
• Sampling Rate: 96 kHz/48 kHz
• Power Requirements: DC24 V/2.5 A, PA-L500 (100 V-240 V, 50 Hz/60 Hz)
• Power Consumption: 43 W
• Dimensions (W x H x D): 12.6 x 17.9 x 5.5 in | 32 x 45.5 x 14 cm
• Weight: 14.33 lb | 6.55 kg
