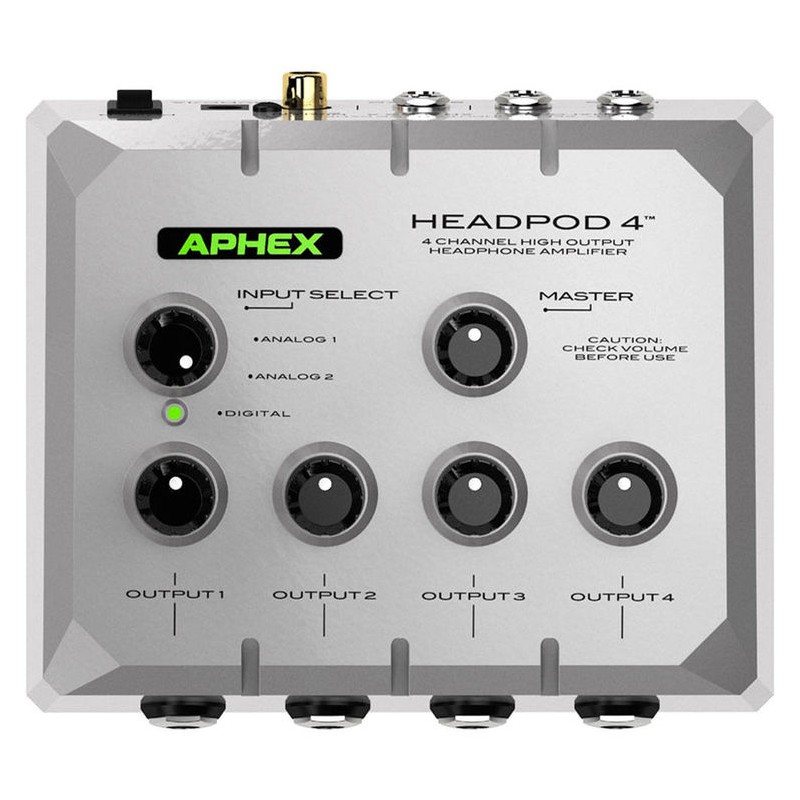

Aphex Headpod4 4-Channel High Output Headphone Amplifier

Share

If the headphone output on your existing gear just isn't loud and clear enough, or you need multiple headphone outputs with independent level controls, the HeadPod 4 by Aphex delivers.

But the HeadPod 4 gives you more than just volume. It's designed to deliver clean, clear, undistorted sound at any level—ideal for long periods of listening without fatigue.

The input signal can be fed from separate balanced connections; a single extension from your existing headphone output; or digitally via S/PDIF. Since it places no load on your existing headphone output, your audio will actually sound better through the HeadPod 4.

Four fully independent amplifiers ensure maximum efficiency with minimum crosstalk and distortion, even when all four outputs have completely different sets of headphones connected. Housed in a rugged, metal chassis, the HeadPod 4 is ready for any environment from the desktop to the rehearsal room, with its optional mic stand bracket.

Whether you're a musician, audio engineer, broadcaster or just over old, tired headphone outputs, the HeadPod 4 is for you.

Aphex Headpod4 - Features:

• Professional monitoring for ALL headphone types
• Individual volume controls
• High headroom (no clipping at high headphone levels)
• Durable metal jacks
• Ultra low distortion and wide frequency response
• Master volume to match source level
• Ultra low cross-talk
• Works from any analog source
• S/PDIF Input
• Top panel input selection
• Listen longer with less fatigue
• Overcomes limitations of typical headphone outputs
• Four independent stereo power amplifiers
• Small size; travels easily

• Input Z: Bal: 20kW / Unbal: 10kW
• Output Z: 10W
• Max. Input Level: +24dBu
• Frequency Response: 10Hz - 120kHz ± 1 dB
• SNR (Typical): 100 dB
• Cross-Talk dB: -80 @ 1kHz, -70 @ 10kHz
• Max. Gain: 35 dB
• THD+N, 1kHz: <.001%, 100mW into 25W
• SMPTE IMD: <.001%, 100mW into 25W
• External Power: 12 VDC, 1000mA; 5.5mm x 2.1mm Power Jack; Positive Tip
• Dimensions (W x H x D): 5.5 x 1.9 x 4.5 in / 13.8 x 4.8 x 11.4 cm
• Weight: 16 oz | 0.45 kg
