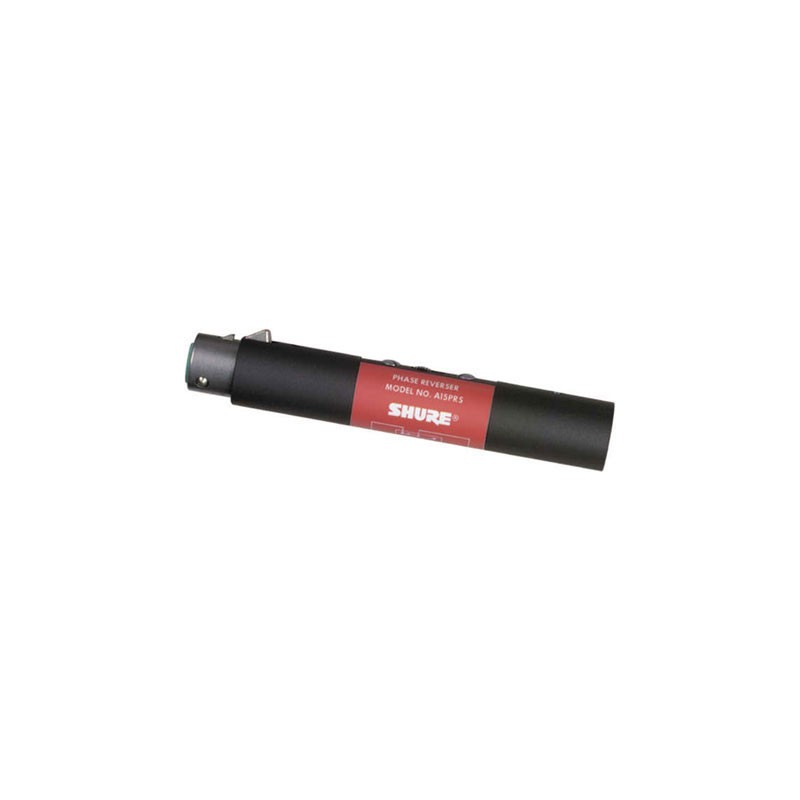

Shure A15PRS Switchable Phase Reverser

Share

The Shure A15PRS reverses the phase (polarity) of a balanced audio signal. Typical use applications include:

• Correcting polarity reversal caused by a wiring error in a microphone cable
• Connecting an unbalanced high impedance microphone having the "hot" signal on pin 3 to the input of a mixer that requires the "hot" signal on pin 2
• Reducing phase cancellation/comb filtering between two signals that are of opposite polarity

An in-line switch permits instant selection of either normal or reversed polarity for comparison purposes.

• Impedance:
  • Input: any impedance, any level
  • Output: any impedance, any level
• Connectors:
  • Designed for connection to Canon XL series, Switchcraft A3
  • Input: 3-socket
  • Output: 3-in
  • Completely reversable
• Case: Full magnetic shield; steel with gray enamel finish
• Dimensions (Diameter x Length): 3/4 in x 15 17/32 in | 19 x 141 mm
