COMTEK FPM-216 Field Program Monitoring Kit

COMTEK FPM-216 Field Program Monitoring Kit COMTEK FPM-216 Field Program Monitoring Kit
With $99 Purchase »
Your Price: $1,493.00
List Price: $1,890.00

Availability: Out of Stock
Quantity:
Manufacturer:

Sales SKU: COM216IFB-PKG
Product Code: FPM-216

The COMTEK FP-216 Field Program Monitoring Kit combines the industry-standard M-216 Option P7 transmitter and two PR-216 receivers into one convenient package for battery-powered in-the-field applications.

M-216 Option P7 Transmitter
The M-216 Option P7 is the perfect on-the-go field transmitter offering directors, crew, and client reliable and superior sounding wireless program monitoring. Equipped with a flexible short whip antenna, the M-216 Option P7 offers superior RF transmission and a greater operating range.

PR-216 Receiver
The PR-216 is our highest fidelity, professional quality, personal monitor receiver. It is digitally synthesized and frequency agile for easy multi-channel operation. This receiver is user-friendly, compact, and extremely rugged.

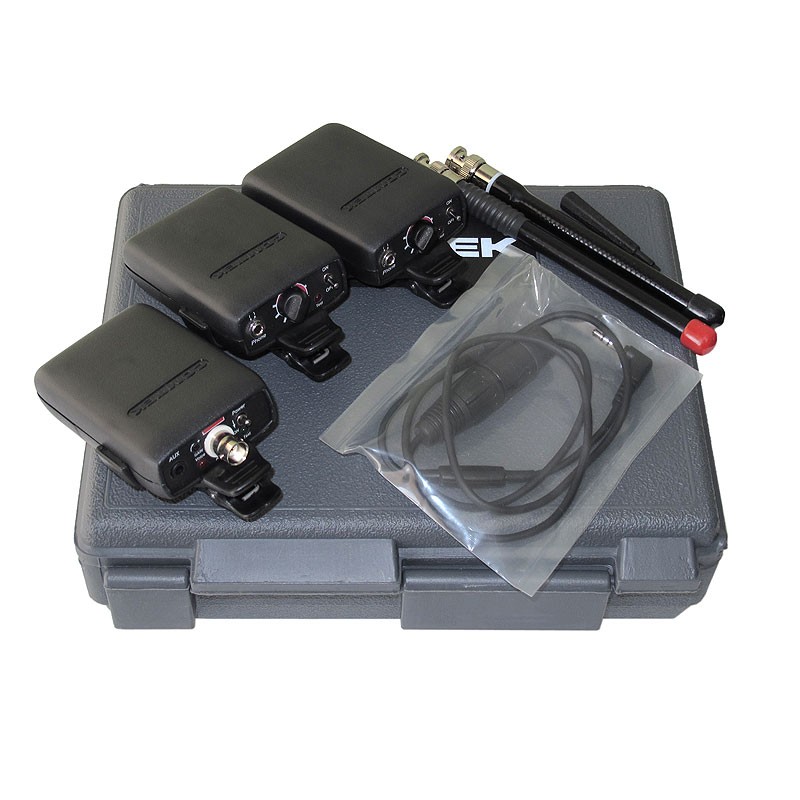

Package includes:

  • (1) M-216 Option P7 Transmitter
  • (2) PR-216 Personal Receivers
  • (1) SLW-216 Whip Antenna
  • (1) C-216-3 Carrying Case
  • PR-216 Receiver:
    • Audio Output: Headset output +16 dBu (low impedance)
    • Connector: Stereo/mono 3.5 mm audio output connector
    • Indicators: LED Power/Battery indicator
    • Controls:
      • Power On/Off switch
      • Volume control (50 dB range)
      • 99-position rotary channel selector switches
    • Audio Frequency Response: 80 Hz to 12 kHz
    • Harmonic Distortion: Less than 1% (80% modulation)
    • Operating Radio Frequency: 216-217 MHz
    • Frequency Stability: 0.002% frequency synthesized crystal controlled
    • RF Sensitivity: 0.5 uV for 12 dB SINAD
    • Adjacent Channel Rejection: 65 dB 50 kHz off-channel
    • Spurious Rejection: 60 dB (image excluded)
    • Ultimate Quieting: Better than 95 dB Companded Channels
    • Deviation Acceptance: Up to 10 kHz
    • Antenna: Integral with output cable
    • Current Drain: 15 mA nominal
    • Power Requirements: 9 volt alkaline battery or rechargeable nickel metal hydride
    • Dimensions: 1 1/6 x 2 1/2 x 3 1/4 in | 27 x 57 x 83 mm)
  • M-216 Option 7 Transmitter:
    • Aux/Line Audio Input: Impedance - 10 k ohm at 0 dB nominal
    • Connector:
      • Auxiliary - Mini stereo 3.5 mm
      • Audio: Tip and sleeve
      • Battery Charging: Tip and sleeve
    • Controls and Indicators:
      • Synthesized channel selection switches
      • Power On/Off switch
      • Audio input gain control
      • Power/Battery status indicator
      • Audio modulation indicator
      • Companded Auto/Off switch
    • Frequency Response: 80 Hz to 10 kHz
    • Audio Distortion: ess than 1% at 80% modulation
    • Modulation Limiter: Soft compressor with 30 dB linear overload protection, attack time - less than 1 ms, recovery time - 10 ms
    • Modulation:
      • 5 kHz deviation Ch. 1-40 (non-companded)
      • 10 kHz deviation Ch. 41-60 (companded)
    • Operating Radio Frequency: 57 synthesized channels in the 216-217 MHz LPRS band under FCC part 95
    • Out-of-Band Emissions: Better than 45 dB below carrier
    • RF Stability: 20 ppm XTL controlled digitally synthesized
    • RF Power Output: 10 mW to antenna system
    • Antenna System: BNC short loaded whip antenna
    • Current Drain: 15 mA constant current
    • Battery:
      • 9 volt alkaline Eveready 522 or equivalent for up to 40 hours of operation
      • 9 volt NiMH rechargeable battery for up to 12 hours of operation
    • Dimensions: 1 1/16 x 2 1/4 x 3 1/2 in |27 x 57 x 89 mm
    • Weight: 5 oz | 140 g
