DPA CORE 6061 Omnidirectional 3mm Subminiature Lavalier, Loud SPL, TA5F

Share

This DPA 6061 with MicroDot to TA-5F Switchcraft connector has a loud SPL making it especially suited for capturing loud sound sources, such as some human voices. The 6061 works well for hidden applications and is most often used to capture the voice when the mic is mounted on the forehead of a theater

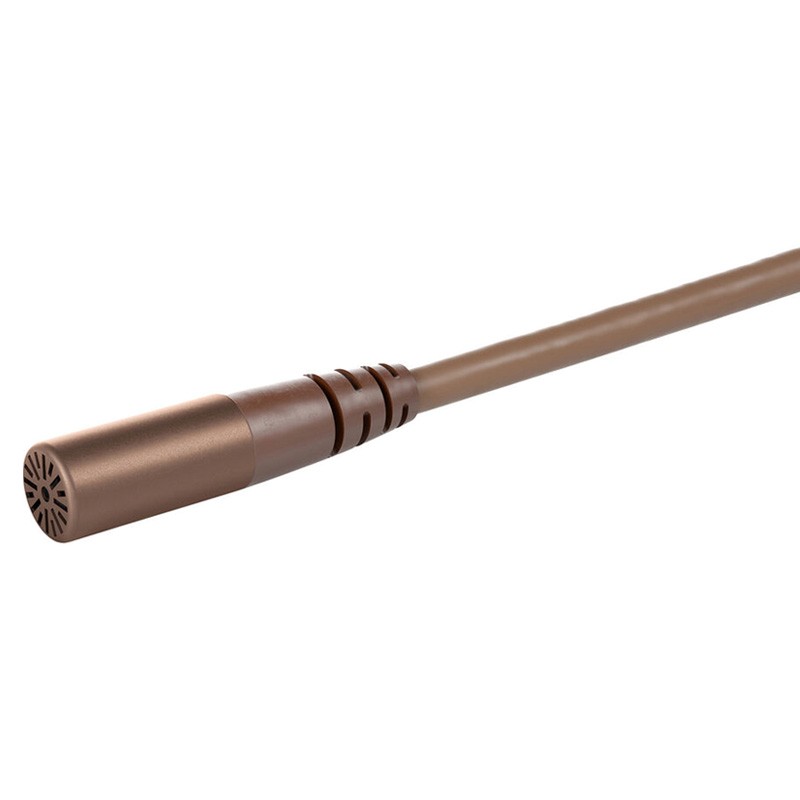

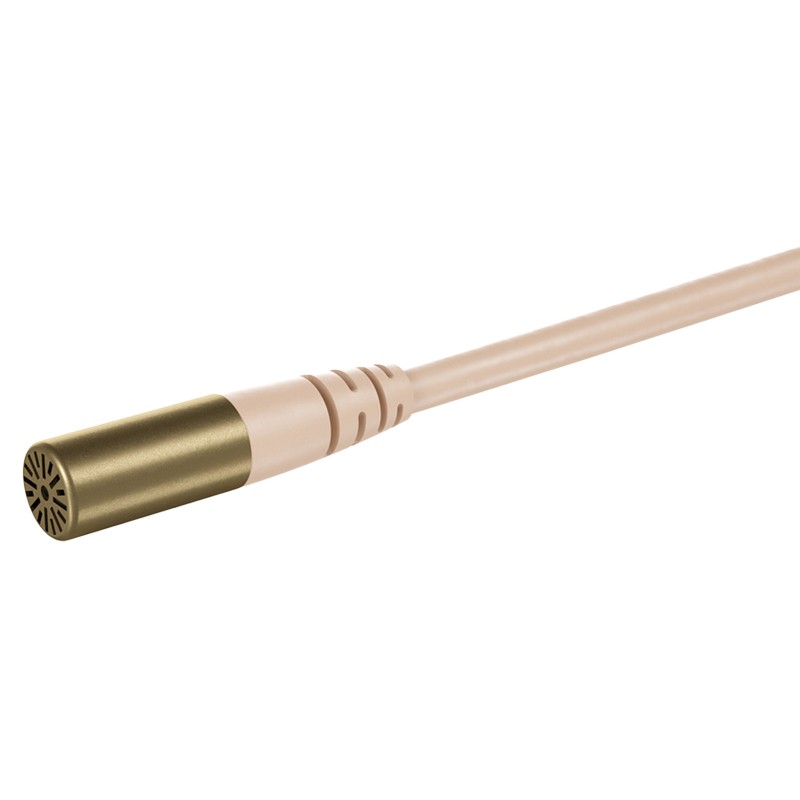

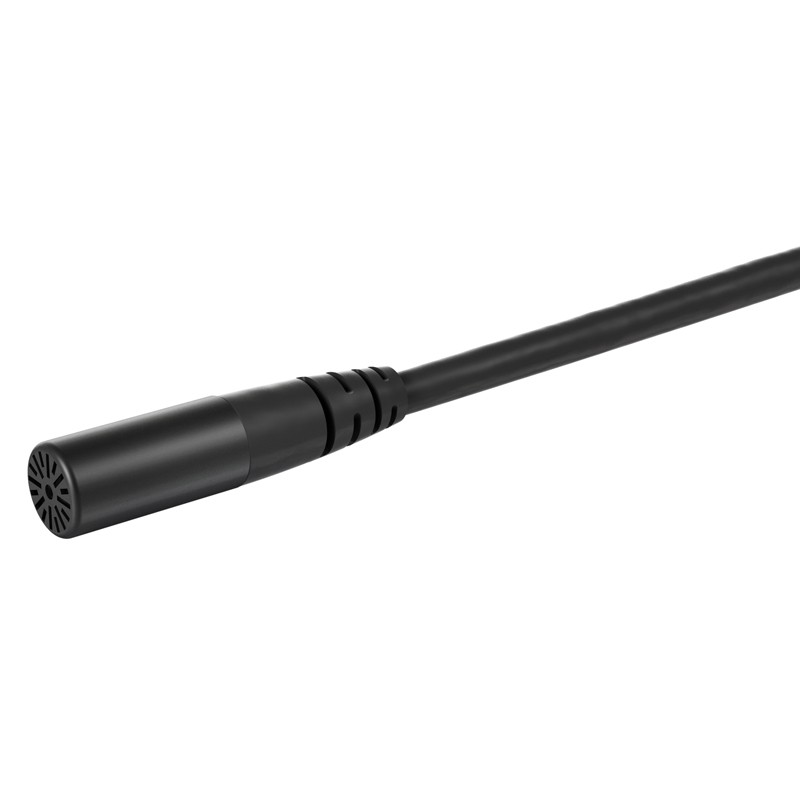

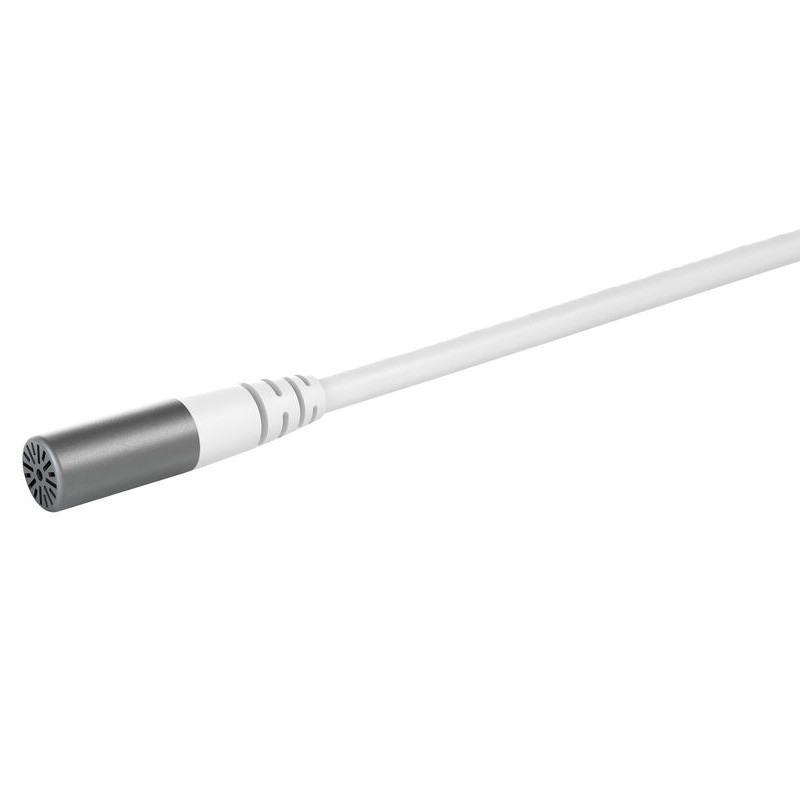

performer. Available colors: Beige, Black, Brown, and White.

The CORE Subminiature Microphones are just 3 mm (0.12 in) in size but pack the audio power of DPA's larger, award-winning mics. What they lack in size, they more than make up for in clarity, consistency and durability—three qualities that really matter. By shrinking CORE by DPA technology, you won't have to compromise on sound to focus on aesthetics.

Shrinking CORE Into 3 mm
CORE by DPA is a powerful technology that minimizes distortion and is at the heart of DPA's miniature microphones. From a whisper to a scream, you will experience increased clarity and openness.

DPA has taken the CORE technology and shrunk it down to fit into 3 mm subminiature mics. This means that, despite their small size, the performance of the CORE Subminiature Series—the 6060 (normal SPL) and 6061 (loud SPL)—is fully comparable to the 5 mm miniature capsules that are beloved around the globe. These subminiatures have a lower noise floor than any other 3 mm capsule on the market and they are better able to capture high sound pressure levels without distortion as well. In terms of technical specifications, the 6060 has a noise floor of only 26 dB(A), which is on par with the 5 mm DPA miniature capsules.

Advanced Mic Design
This tiny capsule has a cap that can be removed for cleaning and should be firmly reattached to the mic body with a firm click that can both be felt and heard. The supplied cap corresponds in its nature to the low-boost grid of DPA's 5 mm versions. Both the mic itself plus the cap are made of stainless steel and treated with a Physical Vapor Deposition (PVD) coating that makes it extremely durable (able to tolerate high temperatures, resilient against impacts and resistant to abrasion).

The cable is often the weak spot on these types of mics, but the 6060 and 6061 lavaliers have the same size cable (Ø 1.6 mm) and the same rugged cable relief as on the 5 mm mics. The cables are extremely durable, do not become entangled and are equipped with an inner core made of Kevlar that withstands rough pulls. A strain relief is integrated in the mic housing to strengthen the assembly. The cable and capsule design ensure immunity to noisy wireless devices.

8-Position Lavalier Clip
When used as a lavalier, a special rotatable clip is available. The 360° clip can be mounted in eight positions, chosen in 45° incremental steps. This makes it very easy to change from womens' to mens' shirts (left to right buttoned) or even t-shirts and the like where the neckline is used.

DPA CORE 6060/6061 - Features:

• Amazing 3 mm CORE capsule technology
• Renowned DPA sound in a 60% smaller package
• Stainless steel, PVD-coated mic housing
• Modular adapter system fits most professional wireless systems

• Directional Pattern: Omnidirectional
• Principle of Operation: Pressure
• Cartridge Type: Pre-polarized condenser
• Frequency Range: 20 Hz - 20 kHz
• Frequency Range, ±2 dB: 40 Hz - 20 kHz with 3 dB soft boost at 8 - 20 kHz
• Sensitivity, Nominal, ±3 dB at 1 kHz
  • 6060: 20 mV/Pa; -34 dB re. 1 V/Pa
  • 6061: 6 mV/Pa; -44 dB re. 1 V/Pa
• Equivalent Noise Level, A-Weighted:
  • 6060: Typ. 24 dB(A) re. 20 μPa (max. 26 dB(A))
  • 6061: Typ. 26 dB(A) re. 20 μPa (max. 28 dB(A))
• Total Harmonic Distortion (THD) < 1%:
  • 6060: 123 dB SPL RMS, 126 dB SPL peak
  • 6061: 125 dB SPL RMS, 128 dB SPL peak
• Dynamic Range: Typ. 102 dB
• Max. SPL, THD 10%:
  • 6060: 134 dB SPL peak
  • 6061: 144 dB SPL peak
• Output Impedance: 30 - 40 Ω
• Cable Drive Capability: Up to 300 m (984 ft) with DAD6001-BC XLR adapter
• Power Supply (for full performance):
  • For Wireless Systems: Min. 5 V - max. 50 V through DPA adapter
  • With DAD6001-BC: P48 (Phantom Power). Will work from 12 V.
• Current Consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR adapter

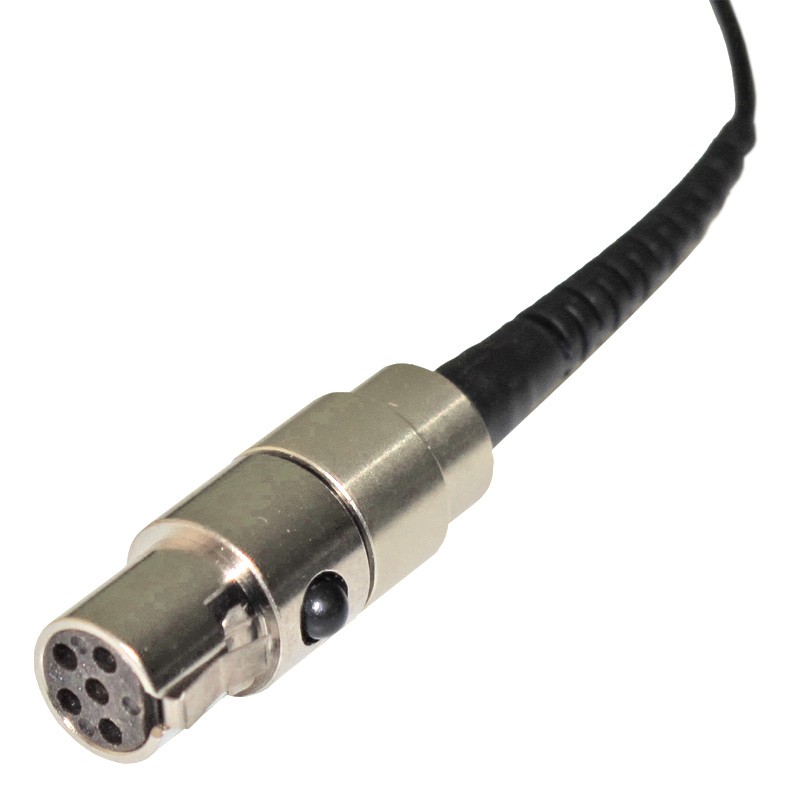

• Connector: Microdot to TA5F Switchcraft
• Color: Beige, Black, Brown, White
• Cable:
  • Length: 5.9 ft | 1.8 m
  • Color: Beige, Black, Brown, White
  • Diameter: 0.06 in | 1.6 mm
• Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
• Temperature Range: -40° to 113° F | -40° to 45° C
• Relative Humidity (RH): Up to 90%
• Microphone Headsize (Diameter/Length): 0.13/0.57 in | 3.4/14.4 mm
• Capsule Diameter: 0.12 in | 3 mm
• Weight: 0.5 oz | 14.2 g, incl. cable and connector
