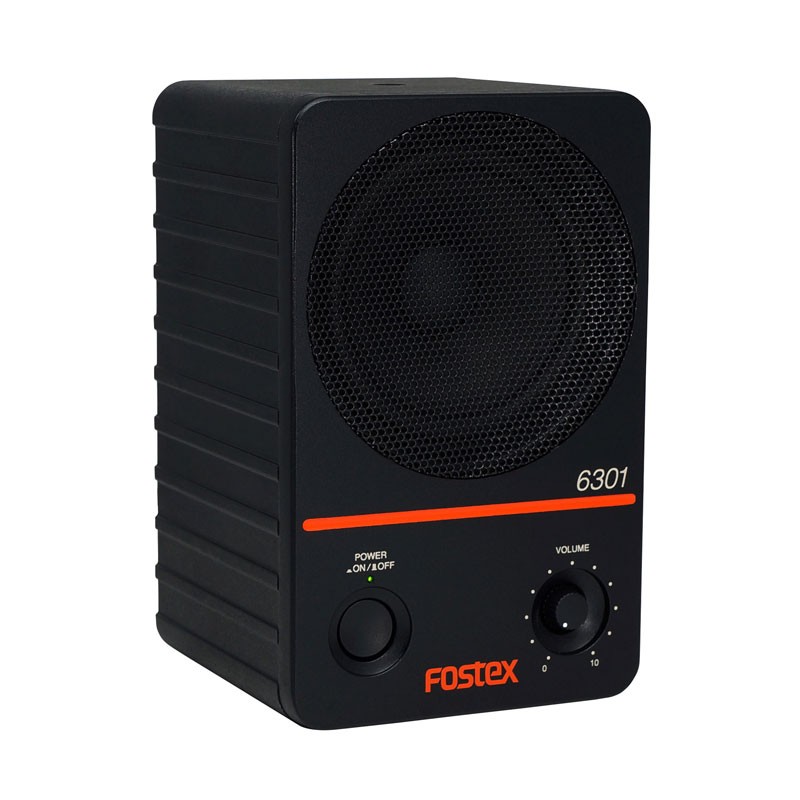

Fostex 6301N Series Active Monitor, 6301NE Electrically Balanced

Share

The 6301 series of active monitors, on the market since 1982, has been redesigned with the latest D-class power amplifier and a driver unit featuring an energy-saving "auto stand-by" function. This 6301NE model comes with an XLR-3-31 connector that is electrically balanced.

Fostex 6301N Features:

• 20W D-class power amplifier for higher output level and less power consumption with no heat sink
• Dedicated 4-inch full range driver for clear audio reproduction
• Traditional rugged enclosure of aluminum die-cast with the physically identical height and width to the current B-series
• Flat panel design to avoid inadvertent power-off or level change
• Energy-saving "Auto Stand-By" mode (compliant to ErP directive)
• Detachable IEC-type power inlet with multi-voltage power handling
• Optional wall mounting bracket (EB-6301) with variable angle adjustments

• Enclosure Type: Sealed power speaker system
• Speaker: 100 mm cone-shaped, 4" full range x 1
• Frequency Response: 70 Hz to 15 kHz
• Output Sound Pressure Level: 85 dB/W (1m)
• Maximum Output SPL: 98 dB
• Rated Output: 20W
• THD: .05% (@ 1 kHz 1W output)

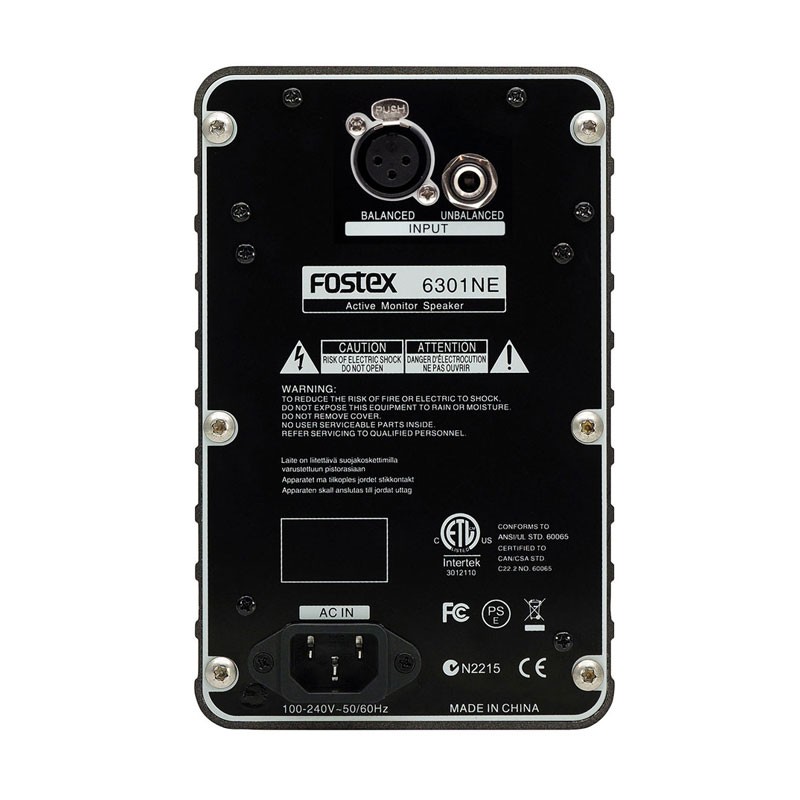

• Input Terminal:
  • Analog, Unbalanced: 6.3 mm (1/4") TS phone
  • Analog, Balanced: XLR-3-31 type HOT No. 2/electronic type
• Input Impedance: Analog input (balanced/unbalanced) 10 kΩ or more
• Input Sensitivity:
  • Analog, Unbalanced: -14 dBV (0.2 Vrms)
  • Analog, Balanced: +4 dBu (1.2 Vrms)
• Residual Noise: -70 dBV
• Enclosure Material: Aluminum die-casting
• Power Consumption: 10W
• Power Cord Length: 6.6 ft | 2 m
• Dimensions (W x H x D): 4.7 x 7.4 x 4.7 in | 120 x 189 x 120 mm
• Weight: 4.9 lbs | 2.2 kg
