Moze Gear TIG Q28 LEMO Time Code Generator

Share

NOTE: Moze Gear units are back-ordered until January 2021.

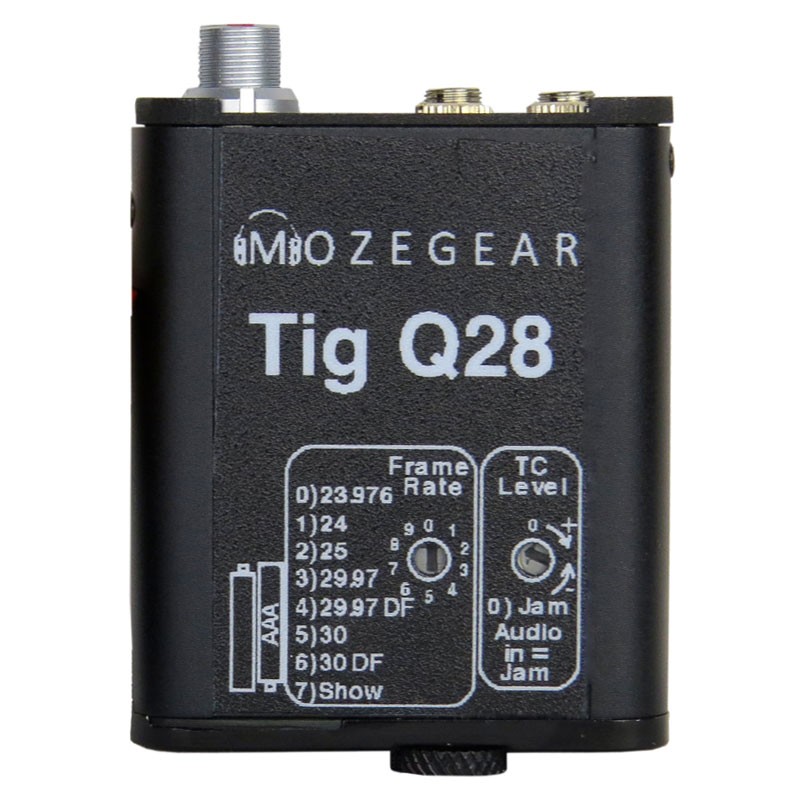

The Moze Gear TIG Q28 Time Code Generator is just 2.8 cubic inches, about a third the size of the current TIG. Loaded with features, its tiny size fits even the smallest cameras and rigs. The variable time code output level and "flow through audio design" adds practicality for cameras and recorders that are not designed to receive time code. Like the Tig, the Q28 works with all standard frame rates, cross jams, has a frame rate discrepancy indicator, and a jamming indicator. It also has a new feature which shows the time code in hours and minutes. The durable chassis has an aluminum body, steel faceplate, reinforced center support, and a battery tube that keeps the batteries secure even when dropped. Overall the Tig Q28 is unbelievably small and "just works".

Moze Gear TIG Q28 - Features:

Small Size
At only 2.8 cubic inches, it is the smallest time code generator on the market and fits even the smallest cameras and rigs.

Flow-Through Audio
The Q28 offers a time code solution for single input cameras and recorders. It combines both the audio and time code into a single output so that it works with devices that do not have time code inputs (i.e. DSLRs).

Variable Time Code Output Level
The output level of the TIG Q28 has 15 adjustable settings between 20mV and 3V. This design means that it will work with many recorders, cameras, and devices.

"Show" Position For Current Time Code
When the switch is turned to the “show” position, the Tig will tell you the current time code in hours and minutes.

Frame Rate Discrepancy Indicator
The "frame rate discrepancy indicator" will evaluate the incoming time code rate and flash two seconds on, two seconds off to let you know the rate you are cross jamming. This eliminates jamming incorrect frame rates.

Jamming Indicator
While jamming, a light on the TIG Q28 will flash once a second to reassure you that the jam is successful. If you are cross jamming, it will flash once every two seconds.

Supports All Standard Frame Rates
All standard frame rates are supported such as: 23.976, 24 25, 29.97, 29.97DF, 30, 30DF.

Intuitive Design
The layout and design is done with ease in mind. It is simple to set up and can be quickly controlled.

High Level Accuracy Design
With a PPM of just .5 and a temperature controlled crystal oscillator (TCXO), the TIG Q28 is an accurate source of time code.

Battery Tube Compartment
Batteries will remain secure with a battery compartment tube design.

Cross Jam
The TIG Q28 will cross jam all rates and the LED will specifically indicate that it is cross jammed.

Durable Design
The Q28 is made from aluminum with a center support beam through the case.

• TCXO Crystal: ± .5PPM
• Battery Power: (2) AAA batteries
• Variable Level Output: Adjustable between 20 mV and 3 V
• Battery Life: 16+ hours
• Casing: Aluminum with reinforced center support and battery tube
• Output Connector: Either 5 pin Lemo or mini phone jack can be used as an output connector
• Input Jam Connector: Mini phone jack or 5 pin Lemo
• Flow Through Audio Input: Mini phone jack
• Dimensions: 2.125 x 2.625 x 0.5 in | 54 x 66.7 x 12.7 mm
• Weight: 1.9 oz | 54 g, without batteries
