Neumann U47 FET Collector's Edition

Share

The Neumann U47 FET was first manufactured from 1972 to 1986, and since then has been firmly established in the range of microphones used by many well-known studios. In addition to serving as a soloist microphone, it has become legendary especially for the recording of bass-heavy instruments and for the direct miking of loud amps.

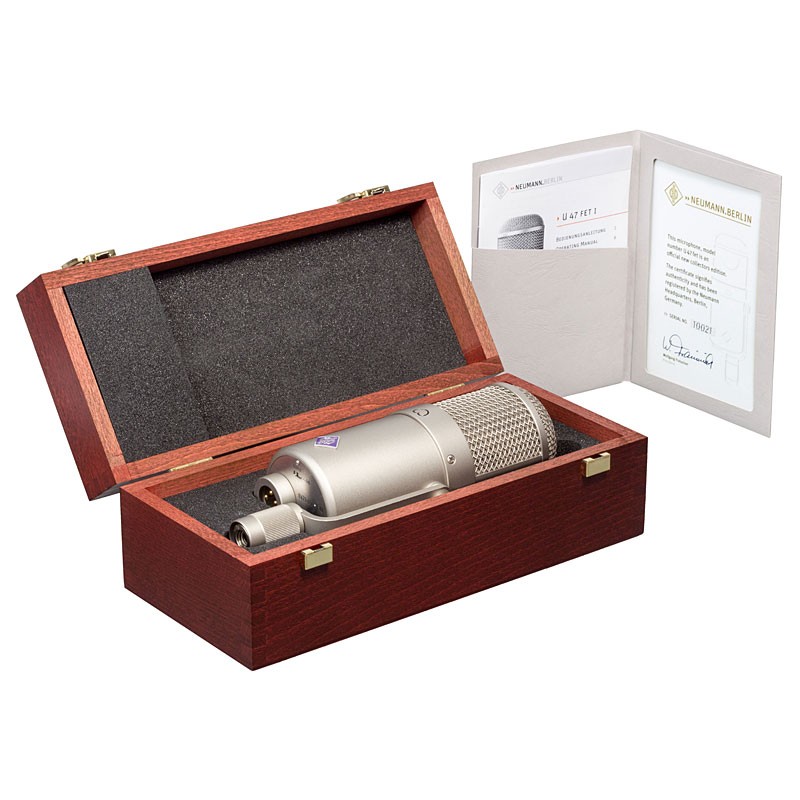

The 2014 U47 FET Collector's Edition is a new edition of this classic. For this, Neumann has resumed production of this classic mic, according to the original production documents and schematics. It is supplied with a high-quality wooden case with sophisticated special packaging, and an individual certificate with the serial number of the microphone.

In terms of technical design, the U47 FET is a condenser microphone with a cardioid directional characteristic and fet 80 circuit technology. Among other things this technology, also used in the U 87, is characterized particularly by a wide dynamic range. The K 47 double large-diaphragm capsule was already employed in the U 47, the legendary tube-based predecessor of the U47 FET. The K 47 provides a slight boost in the range above 2 kHz.

If required, a switchable low-cut filter raises the lower cutoff frequency electronically from 40 Hz to 140 Hz, thus suppressing undesirable low frequencies (such as impact sound and wind noise), or serving to compensate for the proximity effect. Switchable attenuation can reduce transmission levels by 10 dB, facilitating the processing of very high sound pressure levels of up to 147 dB. In addition, to prevent overloading of the connected preamp, the output signal can be reduced by 6 dB via a switch on the bottom of the microphone.

In order to ensure stable positioning, the microphone is swivel-mounted on an integrated bracket. The bracket stand connector has 5/8"-27 internal thread, with an adapter for 1/2" and 3/8" threads. The microphone cable can be secured at the side of the stand connector, by using the knurled nut to fasten it in the slot (for cable diameters of up to 5 mm). The microphone is available in classic nickel.

• Acoustical Operating Principle: Pressure gradient transducer
• Directional Pattern: Cardioid
• Frequency Range: 40 Hz to 16 kHz
• Sensitivity @ 1 KHz Into 1 Kohm: 8 mV/Pa
• Rated Impedance: 150 ohms
• Rated Load Impedance: 1 kohms
• Equivalent Noise Level:
  • CCIR1: 25 dB
  • A-Weighted: 18 dB-A
• Signal-To-Noise Ratio:
  • CCIR1 (Rel. 94 db SPL): 69 dB
  • A-Weighted (Rel. 94 db SPL): 76 dB
• Maximum SPL:
  • For THD 0.5%: 137 dB
  • With Preattenuation: 147 dB
• Max. Output Voltage (for THD < 0.5%): -3.3 dBu
• Power Supply (IEC 61938): P48
• Current Consumption: 0.5 mA
• Required Connector: 3-pin female XLR
• Dimensions (Diameter x Length): 2.5 x 6.3 in | 63 x 160 mm
• Weight: 1.6 lbs | 710 g
