Zoom F2 Field Recorder

Share

The Zoom F2 Field Recorder is ideal for podcasters, videographers, bloggers, journalists and more. It is incredibly small, but its audio quality makes it the perfect solution for creators on the move.

Audio On Autopilot
The F2 features 32-bit float recording technology allowing you to record the loudest audio signals without worrying about clipping. It will also record the quietest signals in beautiful detail. And the best part is, you don't have to worry about setting the gain. Just plug in the lav and hit record.

Please Hold

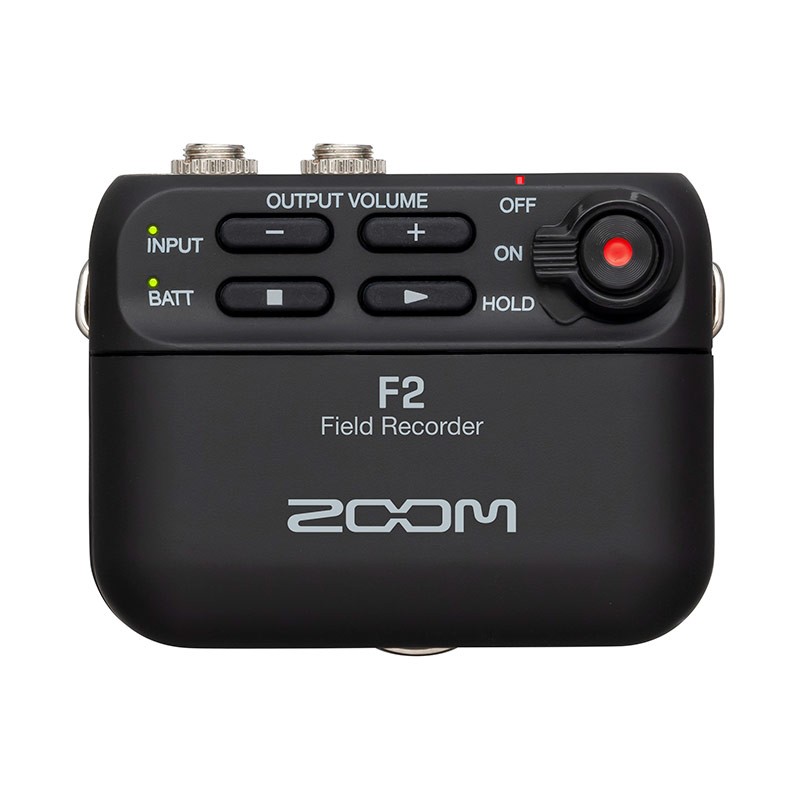

Once you start your recording, use the F2's HOLD switch to ensure you don’t accidentally stop recording.

Lock 'n Lav
Screw-lock connectors keep your lav plugged-in securely no matter the situation.

Available with Bluetooth Control
The F2-BT option comes with built-in Bluetooth. And with the free Zoom F2 Control app, the F2-BT can wirelessly start/stop recordings, display battery levels, adjust output volume, control lo-cut and more.

You can also pair the F2-BT with a Bluetooth timecode synchronization device to receive and write timecode to recorded files.

The F2 Editor
The F2 Editor for PC and Mac allows you to adjust settings, format SD cards and more. Simply connect your F2 or F2-BT via a USB cable and launch the editor. The USB connection also makes it easy to transfer files to your computer.

Power

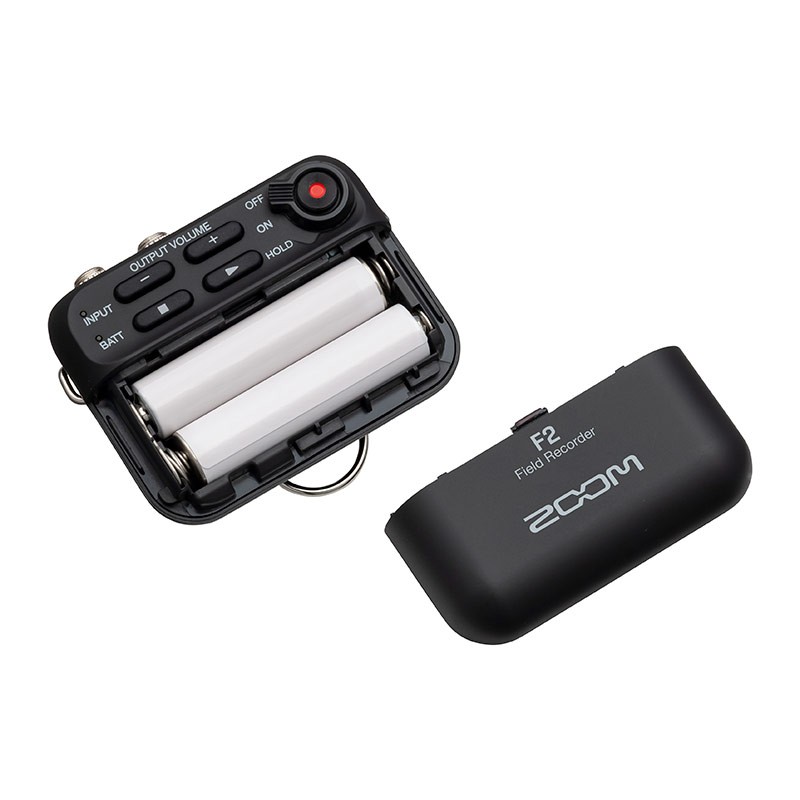

The F2 can record up to 15 hours (14 hours on the F2-BT) with two AAA batteries.

Storage
Record on microSD, microSDHC, and microSDXC cards up to 512GB.

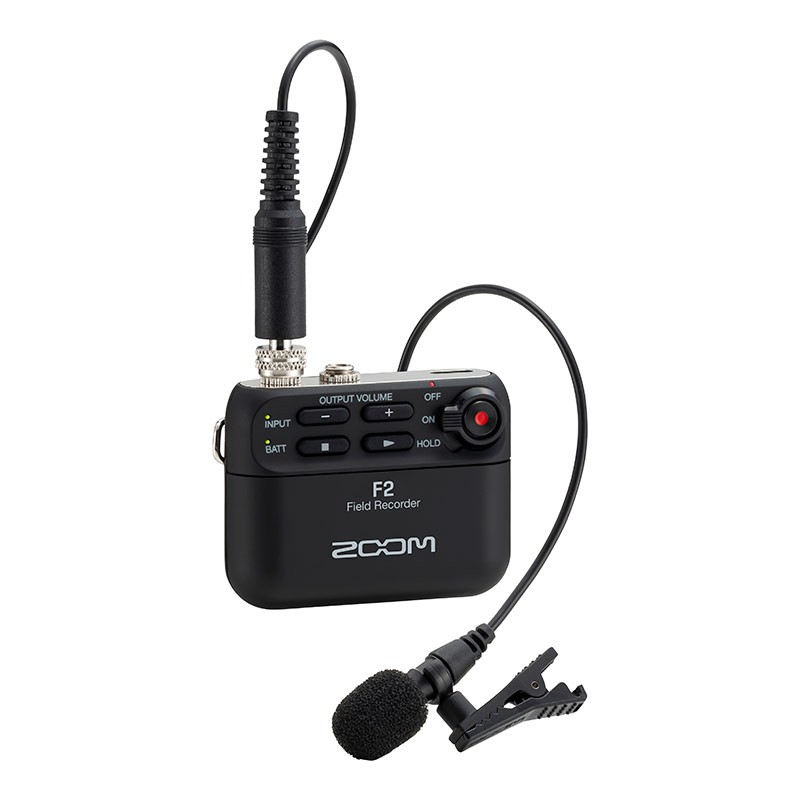

Lavalier Included
The LMF-2 omnidirectional lavalier microphone has a low-profiled design, captures high-quality audio, and includes a windscreen and lapel mic clip.

Recording Formats
The F2 Field Recorder gives you the option to choose the recording format that works best for your projects. Choose from 44.1 kHz/32-bit float or 48 kHz/32-bit float mono WAV files.

Podcasting
WaveLab Cast connects you directly with podcast directories, such as Spreaker or Podbean. You can upload episodes quickly, plus directly create and publish RSS feeds.

Audio for Video
Import your video file and WaveLab Cast will automatically extract the audio. You can use the editing tools to lower unwanted noise, change levels and remove loud sibilants. Metering options allow you to build new tracks, fade-in your music, use EQ and compression. Re-attach the audio to the video file using WaveLab Cast's export functions.

Field Recording
WaveLab Cast supports up to 96KHz audio quality and includes a high-end re-sampler. RestoreRig removes noise and unwanted sounds. You can assemble new files using the snap functions and crossfade options. Once you’re done, export your sound files in any popular audio format

Zoom F2 Field Recorder - Features:

• Light and compact audio recorder
• 32-bit float recording for full dynamic range and clip free recording
• No gain adjustment necessary
• Records 44.1kHz/32-bit float or 48kHz/32-bit float audio files
• Rec Hold function to avoid accidental operation of buttons

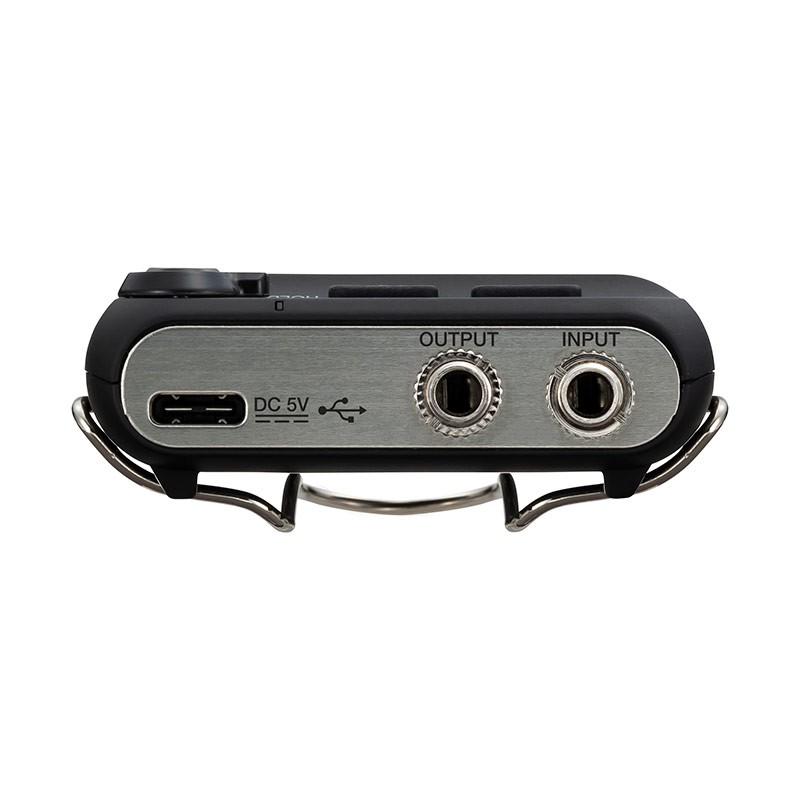

• Stereo 1/8" Mic/Line In mini phone jack with Plug-in power (2.5V)
• Stereo 1/8" Phone/Line Output jack with dedicated volume control
• 80 Hz low cut filter
• High precision internal clock (±0.3ppm) to avoid audio and video syncing issues
• Wireless timecode synchronization (F2-BT model only)*
• Records directly to micro SD and SDHC cards up to 512 GB
• USB-C for connection to F2 Editor for settings
• Built-in Bluetooth for connection to the F2 Control app for settings adjustment and remote transport control (F2-BT model only)
• Runs on only 2 standard AAA alkaline, Lithium, or NiMH rechargeable batteries, or AC adapter (AD-17)
• Up to 15 hours of operation (14 hours on the F2-BT) with two AAA alkaline batteries
  _{*F2-BT connection to UltraSync BLUE device by Timecode Systems is required.}

Package includes:

• F2 or F2-BT Field Recorder
• LMF-2 Lavalier Microphone
• (3) WSL-1 Windscreen
• MCL-1 Mic Clip
• WaveLab Cast Software
• F2/F2-BT Operation Manual

• F2/F2-BT Field Recorder:
  • Input:
    • Connector: 3.5 mm stereo mini (with screw lock); supports plug-in power (2.5 V)
    • Input Gain: None (dual AD conversion system)
    • Input Impedance: 2 kΩ or more
    • Maximum Input Level: -8.8 dBu
  • Output:
    • Connector: 3.5 mm stereo mini (with screw lock)
    • Maximum Output Level: 20 mW + 20 mW (into 32 Ω load)
  • Recording Media: Cards compatible with microSD/microSDHC/microSDXC specifications (Class 4 or higher, 512 GB maximum)
  • Recording Formats: WAV, 44.1kHz/32-bit float, 48kHz/32-bit float; Mono, BWF format supported
  • USB:
    • USB Type-C
    • Mass Storage Operation: USB 2.0 High Speed
    • PC App Operation: USB 2.0 High Speed
  • Power:
    • 2 AAA batteries (alkaline, lithium or rechargeable NiMH batteries)
    • AC Adapter (ZOOM AD-17): DC 5V/1A
  • Bluetooth: Bluetooth Ver 4.2 (F2-BT only)
  • Continuous Recording Time When Using Lavalier Mic (48kHz/32-bit float):
    • Alkaline: about 14 hours
    • NiMH (750 mAh): about 10 hours
    • Lithium: about 18 hours
      The above values are approximate.
  • Dimensions (W x D x H): 2.3 x 1.8 x 0.72 in | 57.5 x 46.4 x 18.3 mm
  • Weight: 1.1 oz | 32 g, lav excluded
• LMF-2 Lavalier:
  • Connector: 3.5 mm stereo mini (with screw lock)
  • Directionality: Omnidirectional
  • Sensitivity: -32 dB/1 Pa at 1kHz
  • Maximum Sound Pressure Input: 115 dB SPL
  • Cable Length: 13.3 ft | 160 cm
