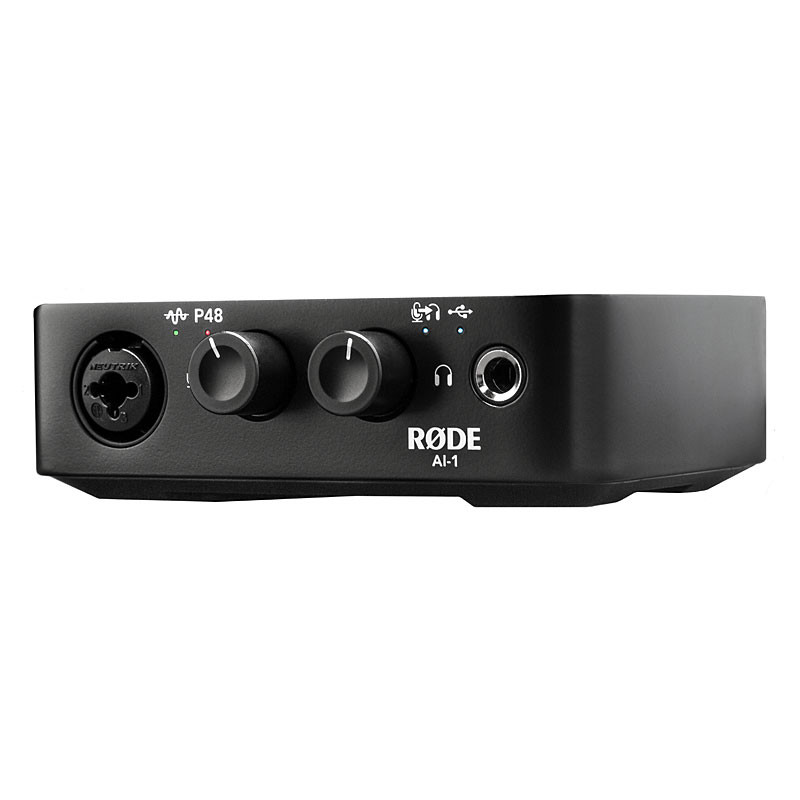

RODE AI-1 USB Audio Interface

RODE AI-1 USB Audio Interface RODE AI-1 USB Audio Interface
With $99 Purchase »
Your Price: $129.00
List Price: $225.00

Availability: Out of Stock
Quantity:
Manufacturer:

Sales SKU: RODAI1
Product Code: AI-1

The RODE AI-1 USB Audio Interface adds studio-quality input and output capabilities to your computer, making home recording easier than it's ever been. With its high quality Neutrik Combo Jack input and discrete Class-A preamp, you'll be able to connect either a microphone, guitar or a line level instrument, such as a synthesizer. Layering tracks is as easy as plug in, set level and go.

The AI-1 deliver crystal clear audio to your computer software. Plus, headphones have never sounded sweeter thanks to the discrete studio-quality headphone output and level control.

RODE AI-1 USB Audio Interface - Features:

  • Neutrik XLR-1/4" TRS Combo Jack Input and a discrete Class-A preamp
  • Zero-latency playback by enabling the direct monitoring feature
  • Playback via headphones or speakers with a high quality discrete headphone amplifier
  • 48V phantom power
  • Class compliant—need to install any drivers
  • Sampling rate of up to 96kHz/24-bit
  • (2) Balanced 1/4" speaker outputs
  • Rugged body with Satin Black Finish
  • Computer Connectivity: USB
  • Form Factor: Desktop
  • Simultaneous I/O: 1 x 2
  • Number of Preamps: 1
  • Phantom Power: Yes
  • Bit Depth: 24-bit
  • Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
  • Analog Inputs: (1) Neutrik XLR-1/4" combo
  • Analog Outputs:
    • (2) 1/4" (impedance balanced)
    • (1) 1/4" (headphones)
  • Direct Monitor: Yes
  • USB: USB Type C
  • Bus Powered: Yes
  • OS Requirements: Mac OS 10.10 or later; Windows 7 or later
  • Power: USB bus-powered
  • Dimensions (D x W x H) 3.9 x 4.9 x 1.5 in | 100 x 124 x 38 mm
  • Weight: 1 lb 3.7 oz | 560 g
  • Input:
    • XLR/Mic Input:
      • Dynamic Range: 104 dBA
      • Equivalent Input Noise @ Maximum Gain (Source Impedance 150 ohms, 20 Hz - 20 kHz, A-weighted): -128 dBA
      • Frequency Response (Measured after ADC): 20Hz - 20kHz better than ± 1 dB
      • Gain Range: 0dB - > 45 dB
      • Input Impedance: 1.3k Ohms
    • Instrument Input:
      • Dynamic Range: 99 dBA
      • Frequency Response (Measured after ADC): 20 Hz - 20 kHz better than ± 1 dB
      • Gain Range: 0 dB - > 45 dB
      • Input Impedance: 900k Ohms
  • Outputs:
    • Monitor Outputs:
      • Maximum Output Level: -6 dBu
      • Frequency Response: 20 Hz - 20 kHz better than ± 1 dB
    • Headphone:
      • Max Output Power @ 1% THD: 32 Ohms - > 210 mW; 300 Ohms - > 390 mW
