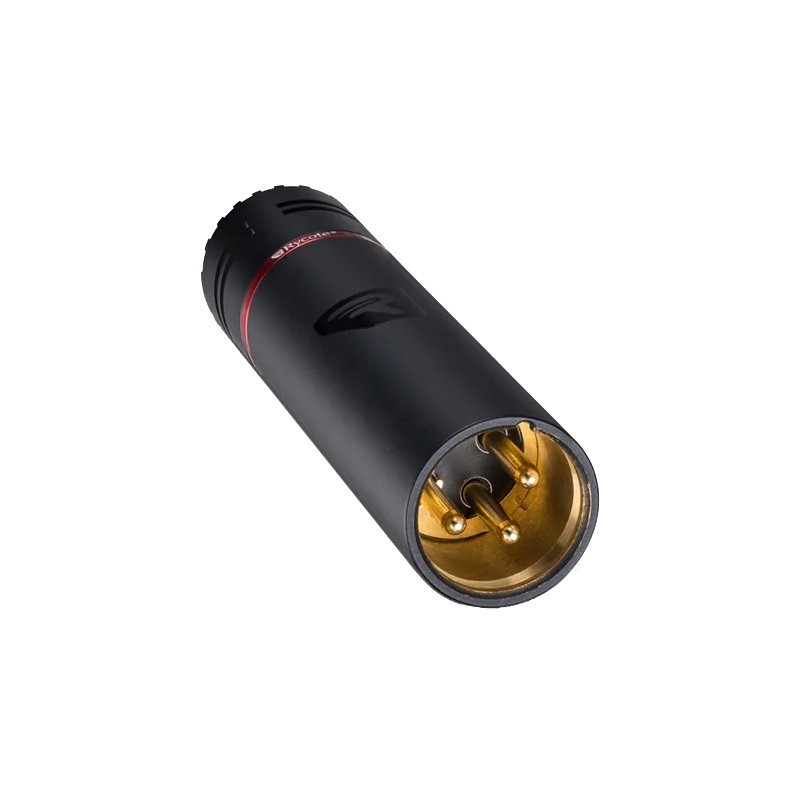

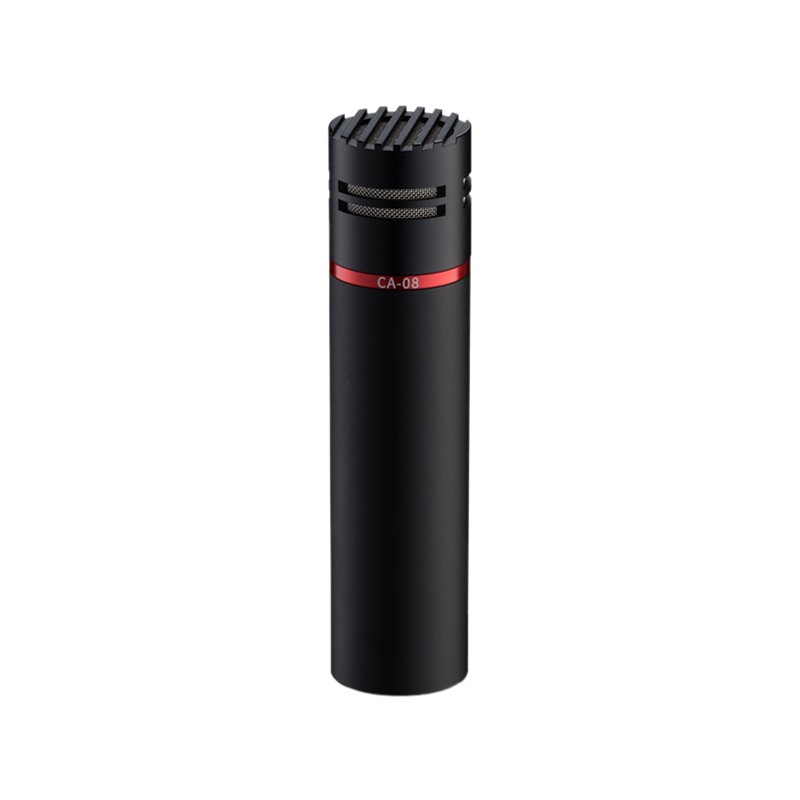

Rycote CA-08 Cardioid Pencil Condenser Microphone

Share

The Rycote CA-08 is a cardioid pencil condenser microphone designed for a range of applications in studio and field recording.

The CA-08 microphones provide slight directionality with a virtually flat frequency response from 70Hz-20KHz, moderately dropping off below 60Hz. The mics are built on Rycote's low self-noise preamp design and capsules which offer a consistent sonic signature that mixes well when cut together with other Rycote microphones in the range. The CA-08 mics can be used individually or in matched stereo pairs.

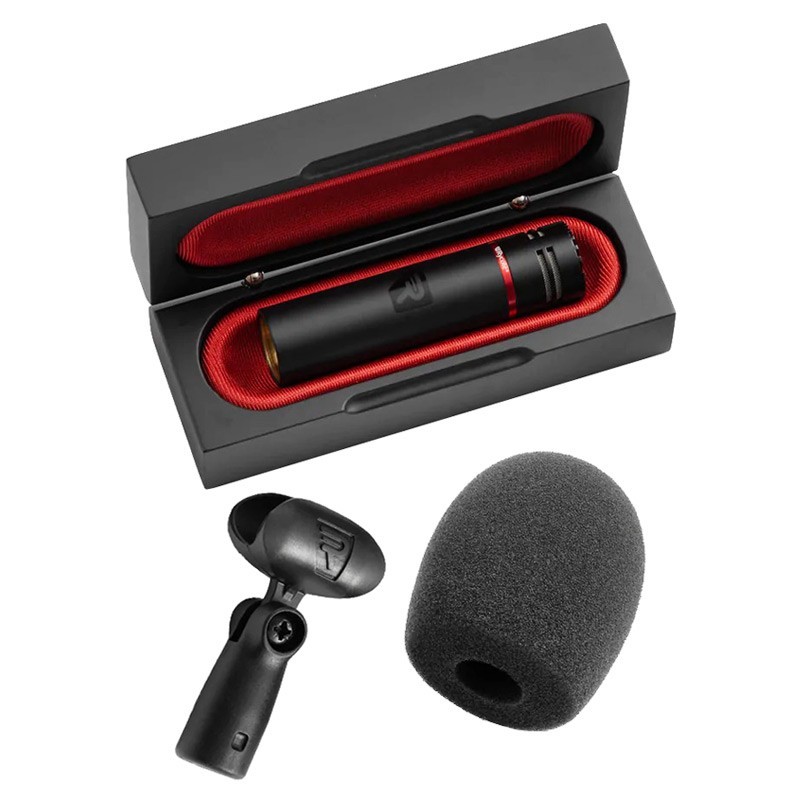

Package includes:
(1) CA-08 Microphone
(1) Hard case

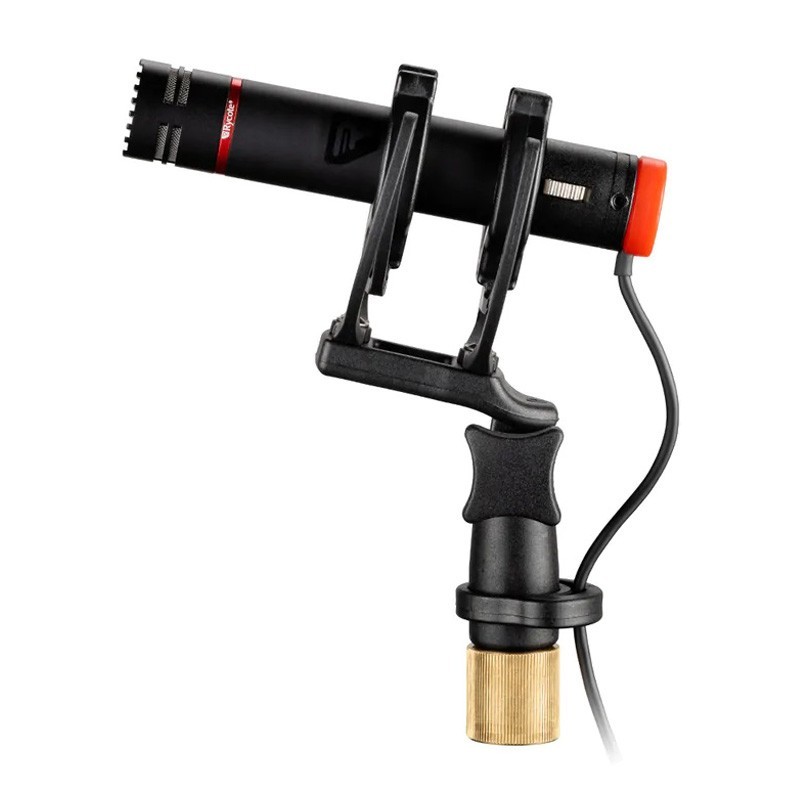

(1) Clamp
(1) Foam windshield

Rycote CA-08 Cardioid Condenser Microphone - Features:

• Capsule:
  • Professional broadcast quality and individually fine-tuned back electret capsule
  • Virtually flat frequency response from 70Hz to 20KHz
• Preamp:
  • Compact design
  • Ultra low noise circuitry
  • Sophisticated RF shielding
  • Low power consumption
• Connector: Gold-plated Neutrik XLR connector
• RF-Protection:
  • Active in-line filtering
  • Fine-tuned mechanical RF shielding
  • Thoroughly tested against digital wireless systems and walkie talkies
• Materials:
  • Preamp made from non-corrosive machined brass - low impedance to ensure best possible and longest lasting RF shielding
  • Capsule made from lightweight machined aluminum

• Frequency Range: 45 Hz - 20 kHz
• Self Noise: 13.0 dB-A (+/- 2 dB)
• Polar Pattern: Cardioid
• Capsule Type: Back Electret Condenser
• Output Sensitivity: 24.3 mV/Pa (-26.9 dB)
• Max. Output Voltage: 4 Vp
• Output Impedance: 100 Ω
• Min. Load Impedance: 1 k Ω
• Signal / Noise Ratio: 80 dB typical (@ 1 kHz/Pa A-weighted)
• CMRR (@ 1 kHz): > 60 dB
• Max. Cable Length: 100 m
• Powering: P-48
• Powering Valid Range: 48-24V (Max SPL reduced at 24V)
• Current Consumption: 3.0 mA
• Max. SPL: 133 dB SPL (at 1 kHz 1.0% THD Typical) 127 dB SPL (at 1 kHz 0.5% THD Typical)
• RFI Shield: Yes
• Connector: 3-Pin Male XLR
• Color: Matte Black
• Dimensions (⌀ x L): 0.75 x 3.07 in | 19 x 78 mm
• Weight: 2.43 oz | 69 g
