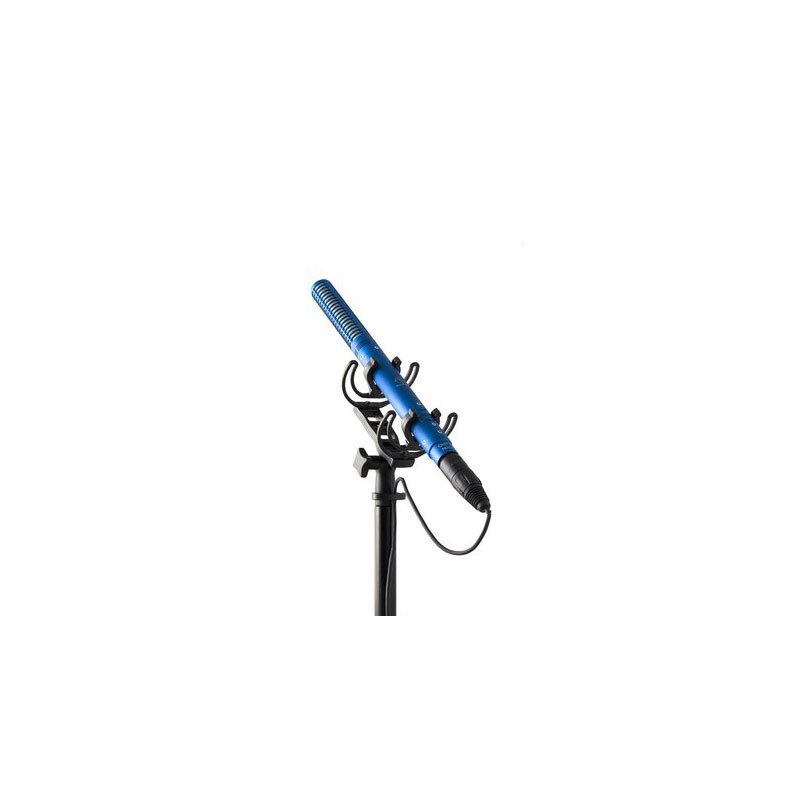

Rycote INV-7 InVision Microphone Suspension Bar

Share

Rycote's InVision microphone suspension range is the ideal answer to isolating small to medium length microphones where a discrete low profile is essential. Designed for studio and installed sound use, the InVision suspension does not have the ability to be used in conjunction within a windshield*.

The InVision suspensions all use Rycotes patented "Lyre" suspension system. The Lyre suspension uses no runner or elastic components to isolate the microphone from unwanted shocks and handling noises. Instead, the design of the shape allows a specific compliance to the microphone, and so prevents the handling noise from reaching the capsule.

The operating temperatures for the Lyres is from -31°F (-35°C) to over 212°F (100°C) which far exceed any elastic or rubber shockmount or suspension.

*The "Standard" Lyre suspension webs are available on both the Modular Suspensions & Windshield Kits and the S-Series.

• Standard Lyre/Suspension (H x W): 2.75 x 1.57 in | 70 x 40 mm
• Front & Rear Clips: 0.74 to 0.98 in | 19 to 25 mm diameter mics
• Long Bar Size: 70 mm (2.75") centers
• 3/8" Threaded Stand Adapter
