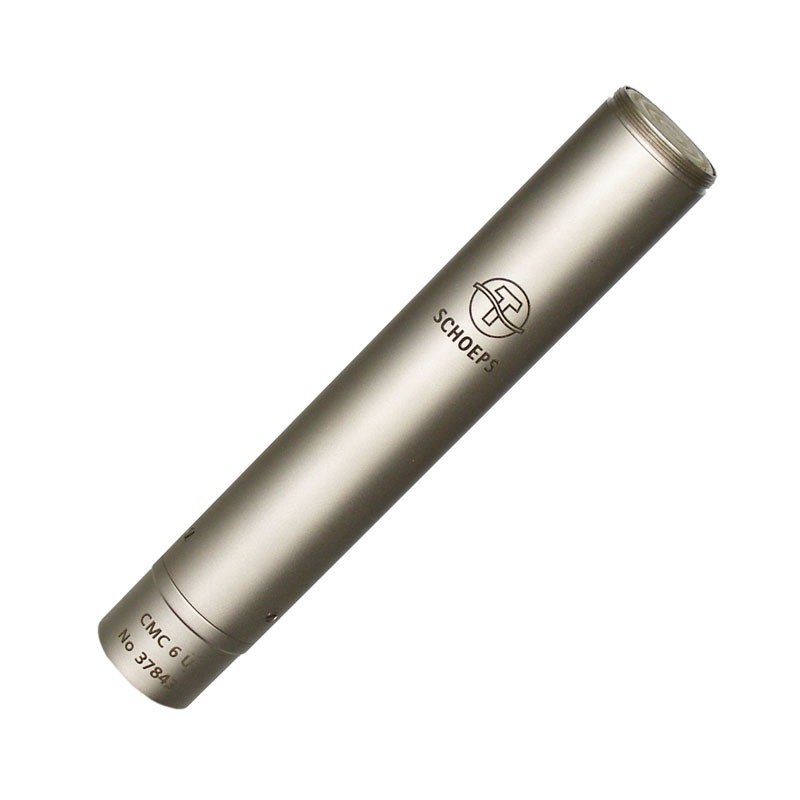

Schoeps CMC6 U Microphone Preamp - Nickel

Share

The Schoeps CMC 6 U is available in NIckel and Matte Gray. The capsules of condenser microphones cannot be connected directly to microphone cables or inputs; a microphone preamplifier is required in between.

The Schoeps CMC6-U microphone preamp is a balanced output stage and +12 to +48V phantom power supply for the Schoeps Colette series modular capsules. The transformer-less output stage ensures low-noise and pristine audio reproduction throughout. The CMC6-U is terminated with a standard balanced 3-pin XLR connection for use with standard microphone inputs and preamplifiers. It can be used with very long cables and is well-protected against RFI (radio frequency interferance.

• Frequency Range: 20 Hz - 20 kHz
• Maximum Output Voltage: 1 V (0 dBV) with 1 kΩ load
• Low Cut Filter: 20 Hz, 12 dB/oct.
• Minimum Recommended Load Impedance: 1 kΩ
• Output Impedance: 42 Ω
• Maximum Cable Length: > ~1300 ft | 400 m
• Schoeps RFI Field: Yes
• Powering Standard / Valid Range: P48 / 20-52 V P12 / 10-13 V
• Maximum SPL (THD < 0.5 %): with MK 4: 131 dB-SPL (P48, P12)
• Current Consumption: 4 mA (P48), 8 mA (P12)
• Common Mode Rejection Ratio (at 1 kHz): > 55 dB
• Output: XLR-3M, analog, 1 channel
• Length: 4.57 in | 116 mm
• Diameter: 0.79 in | 20 mm
• Weight: 2.1 oz | 60 g
