Sennheiser AVX-MKE2 SET-4-US AVX Wireless MKE 2 Lavalier Pro Set, 1.9 GHz

Share

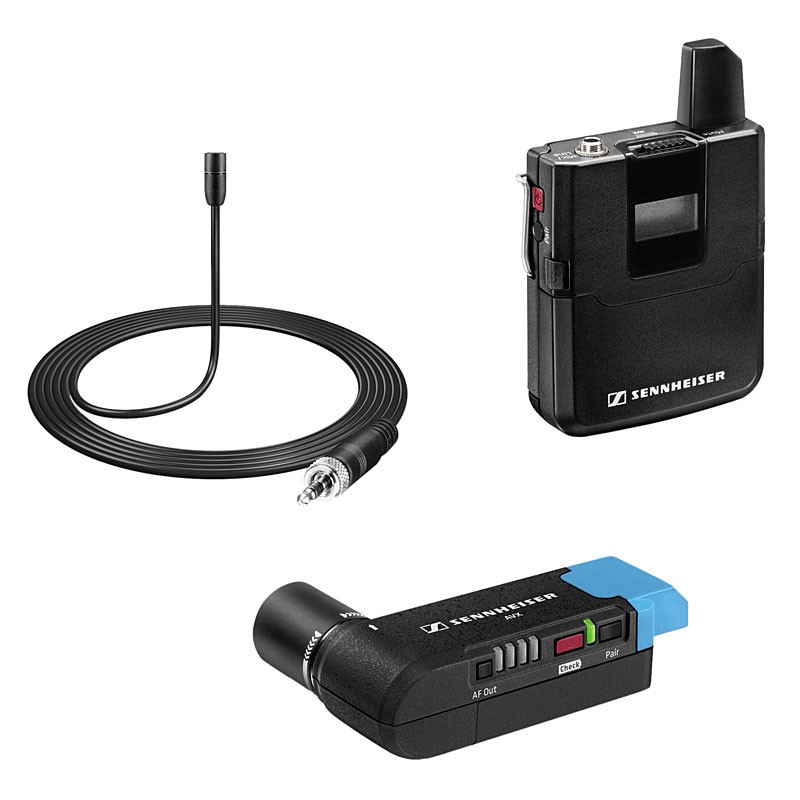

The AVX-MKE2 includes a bodypack transmitter with lavalier microphone, the plug on receiver and all accesories to operate out of the box with camcorders as well as DSLR cameras. It features self configuring digital transmission which eliminates time-consuming radio frequency setup. The ultra compact receiver rotates around the XLR connector to avoid collision with other devices mounted on your camera. It switches on and off automatically with your camera - saving battery power. The AVX matches perfectly to your camera's input sensitivity without having to adjust the audio level on the microphone. From professional wedding video to documentaries, from street interviews to corporate videos, the AVX just works allowing you to concentrate on creativity. The AVX-MKE2 SET-4-US package includes:

• EKP AVX-4-US Plug-On Receiver
• SK AVX-4 Bodypack Transmitter
• MKE 2 Lavalier Microphone
• Energy pack
• USB charger
• USB charging cable
• Microphone clip
• Hot shoe mount
• Beltclip
• XLR to mini jack cable
• Pouch

Sennheiser AVX-MKE2 SET-4-US Features:

• Optimized dynamic range
• Plug and record
• Link protection
• Plugs directly into XLR audio input
• Ultra compact receiver
• Switches on/off by P48 Phantom power
• Auto frequency management
• AES 256 encryption
• License-free 1.9 GHz range
• Accessories included for DSLR use
• Metal housing

• AVX Wireless System:
  • Frequency Response: 20 Hz - 20000 Hz
  • Dynamic Range: > 120 dB(A)
  • Total Harmonic Distortion (THD) @1 kHz): typ. 0.1 %
  • Sampling Rates: 24 bit / 48 kHz
  • Signal-To-Noise Ratio: > 90 dB(A)
  • RF Frequency Range: 1.9 GHz
  • Modulation: GFSK with return channel
  • Diversity: TDMA fast switching antenna diversity
  • Latency: 19 ms
  • Temperature Range:
    • Operating: 14° to + 131°F | -10 to + 55°C
    • Storage: -4° to + 158°F | -20 to + 70°C
• EKP AVX-4-US Plug-On Receiver:
  • RF Sensitivity: < -90 dBm
  • Transmission Power Return Channel: Typ. 15 dBm e.i.r.p.
  • Audio Output: XLR Male, balanced
  • Audio Output Level: -30 dBu, 0 dBu in 4 steps
  • Power Supply: BA 20 Li-Ion 3.7 V DC, alternative USB
  • Operating Time: > 4 hours
  • Weight: 85 g
• SK AVX-4-US Bodypack Transmitter:
  • Transmission Power: 100 mW average (250mW peak), country-specific
  • Frequency Response:
    • Mic: 50 Hz to 20 kHz
    • Line: 20 Hz to 20 kHz
  • Maximum Input Level:
    • Mic: 2.2 V RMS
    • Line: 3.3 V RMS
  • Input Impedance: 1 MOhm
  • Input Sensitivity: Automatic sensitivity adjustment
  • Power Supply: BA 30 Li-Ion 3.7 V DC energy pack or (2) AA 1.5 V primary cells via battery holder (not included)
  • Operating Time:
    • Typ. 15 hrs with energy pack/li>
    • Typ. 11 hrs with Alkaline primary cells
  • Audio Input: 3.5 mm mini jack
  • Weight: 87 g (including energy pack)
• MKE 2 Lavalier Microphone:
  • Transducer Principle: Pre-polarized condenser
  • Sensitivity: 5 mV/Pa
  • Directivity: Omnidirectional
  • Max. SPL: 142 dB
