Sennheiser ew D1-ME2 Evolution Wireless D1 System With ME2 Lavalier

Share

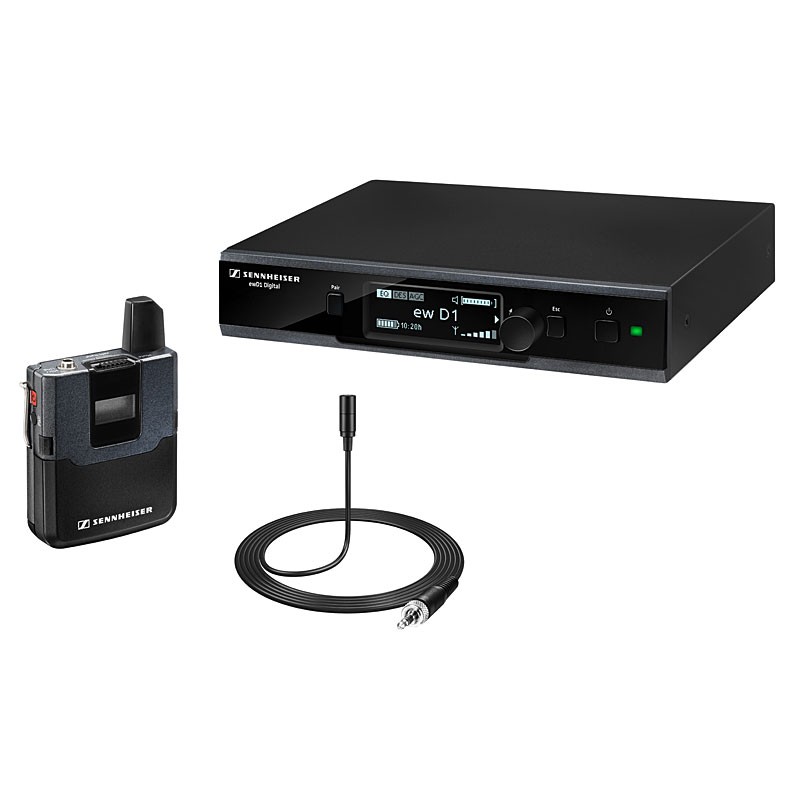

The Sennheiser ew D1-ME2 Wireless Lavalier Set includes:

• EM D1 rackmount receiver
• SK D1 bodypack transmitter
• ME 2 clip-on microphone
• Power supply
• Battery holder
• (2) AA batteries

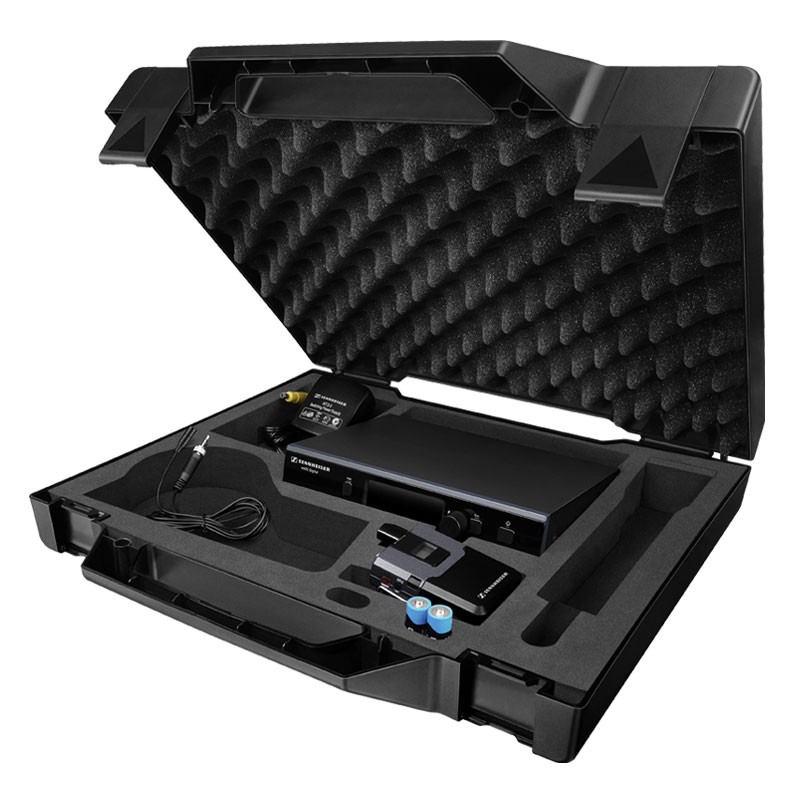

• Transport case
• User manual

The ew D1-ME2 is part of the Evolution Wireless D1 line, a digital sound transmission system that makes no compromises when it comes down to reliability, sound quality or user-friendliness. It can run up to 15 output lines in parallel and it operates in the license-free 2.4 GHz band.

Sennheiser ew D1-ME2 - Features:

• Unobtrusive professional clip-on microphone
• Up to 15 compatible channels (under optimal conditions) in license-free 2.4 GHz band
• Automatic frequency management
• Prevents interference: Intelligent channel back-up allows co-existence with WiFi and Bluetooth
• Audio effects: equalizer, de-esser, automatic gain control/li>
• iOS and Android app for remote control and monitoring of the system
• Rugged metal housing

• Sennheiser EM D1-NH Rackmount Receiver:
  • RF Sensitivity: ≤ 90 dBm
  • RF Output Power: 100 mW, EM D1-NH-US option
  • Audio Output Level Gain:
    • Mic/Line Level Switch: -24 dB/0 dB
    • XLR, Balanced: Max +18 dBu
    • Jack, Unbalanced/Balanced: Max +12 dBu/Max +18 dBu
  • Audio Output Level Gain:
    • Low cut: -3 dB at 120 Hz
    • Equalizer: 7-band graphic equalizer
    • De-Esser: Multi-frequency targets
    • Automatic Gain Control (AGC): Compression/expansion with automatic make-up gain function
  • Display: OLED
  • AF Connection Sockets: XLR/1/4" (6.3 mm) jack
  • Antenna Connector: (2) Rev-SMA
  • Network Socket: RJ45
  • Network Protocol: Media Control Protocol, TCP/IP IPv4 (DHCP, Manual)/IPv6
  • Power Supply: 12 V DC hollow jack
  • Current Consumption: 350 mA
  • Dimensions (W x H x D): 8.3 x 1.7 x 6.6 in | 212 x 43 x 168 mm
  • Weight: 29 oz | 824 g, without batteries
• Sennheiser SK D1-NH Bodypack Transmitter:
  • RF Output Power: 100 mW, SK D1-NH option
  • AF Frequency Response:
    • Mic: 50 Hz to 20 kHz
    • Line: 20 Hz to 20 kHz
  • Max. Input Level:
    • Mic: 2.2 V RMS
    • Line: 3.3 V RMS
  • Line Input Impedance: 1 MΩ
  • Input Sensitivity: Automatic sensitivity adjustment
  • Power Supply:
    • (2) AA size battery (1.5V) | Operating Time: typical 6 hours
    • Optional Accupack BA 30 (Li-Ion, 3.7V) | Operating Time: typical 11 hours
  • AF Connection Socket: 3.5 mm jack socket, lockable
  • Dimensions (W x H x D): 2.6 x 3.9 x .94 in | 65 x 100 x 24 mm
  • Weight: 3 oz | 85 g, without batteries
• Sennheiser ME2 Lavalier:
  • Microphone Type: Pre-polarized condenser
  • Sensitivity: 20 mV/Pa
  • Pick-Up Pattern: Omni-directional
  • Max. SPL: 130 dB SPL
