Sennheiser MKH 8020 Omnidirectional Recording Condenser Microphone

Share

The omnidirectional MKH 8020 is ideal for recording large and small sound sources, for a "Decca Tree" or for use in an OSS "Jecklin Disk" array. As it does not suffer from a proximity effect, it is also a good choice for close-miking. If the acoustic ambiance is right, this microphone will provide very impressive recordings. The extra octave at the bottom end makes the MKH 8020 perfect for recording pipe organs, grand piano and acoustic double-bass. The MKH 8020 package includes:

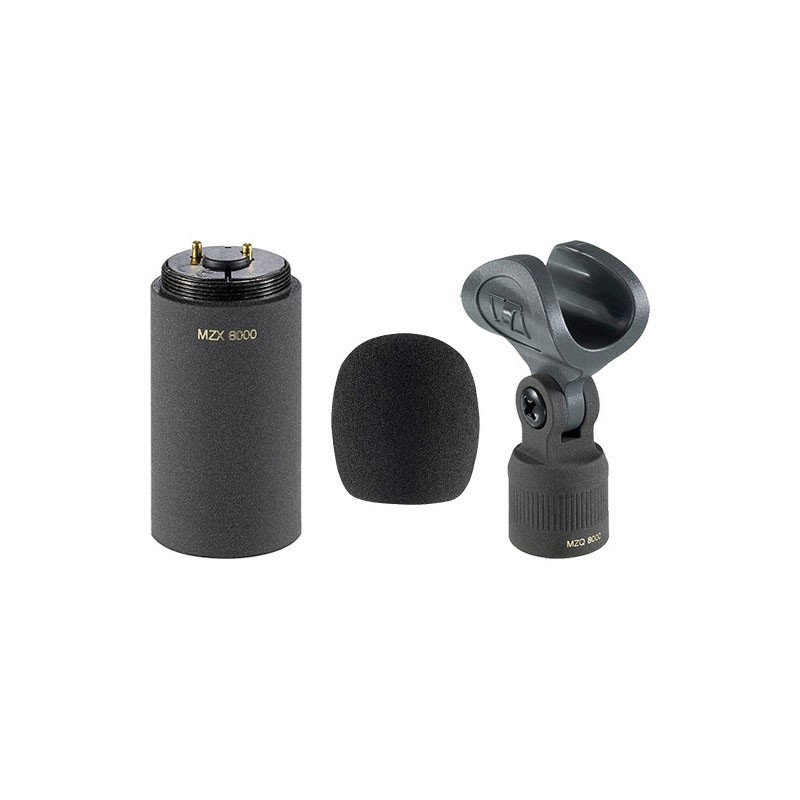

• MKHC 8020 microphone head/capsule
• MZX 8000 XLR module
• MZQ 8000 microphone clip
• MZW 8000 windshield
• Aluminum transport case
• User manual

Also available: MKH 8020 Stereo Set, the matched pair version of MKH 8020.

Sennheiser MKH 8020 - Features:

• Exceptionally low inherent self-noise prevents masking of filigree sound structures
• Symmetrical transducer technology ensures extremely low distortion
• Extremely wide frequency response for an optimum resolution of the finest details
• Transformerless and fully floating balanced output provides for easy connection at minimal distortion
• High sensitivity ensures interference-free transmission with a high signal voltage
• Frequency independent directional characteristics for minimum colouration in the direct and diffuse field
• Rugged metal housing with non-reflective Nextel coating, making the microphone the ideal choice for in-vision use
• Compact design and small diameter allow the unobtrusive positioning of the microphone, even close to instruments
• Modular design provides for easy exchange of the microphone heads and the use of specially-tailored accessories to suit every application

• Pick-Up Pattern: Omnidirectional
• Frequency Response: 10 - 70,000 Hz
• Audio Output: XLR-3M balanced, transformerless, floating
• Sensitivity (free field, no load, 1 kHz): 31 mV/Pa (- 30 dBV/Pa)
• Nominal Impedance: 25 Ohms
• Min. Terminating Impedance: 1 kOhms
• Equivalent Noise Level:
  • A-weighted (DIN-IEC 651): 10 dB(A)
  • CCIR-weighted (CCIR 268-3): 21 dB
• Max. SPL: 138 dB
• Phantom Powering: 48 ± 4 V Phantom
• Current Consumption: 3.3 mA
• Dimensions (Diameter x Length): 0.75 x 1.62 in (2.95 in with MZX 8000) | 19 x 41 mm (75 mm with MZX 8000)
• Weight: 0.88 oz (1.94 oz with MZX 8000) | 25 g (55 g with MZX 8000)
