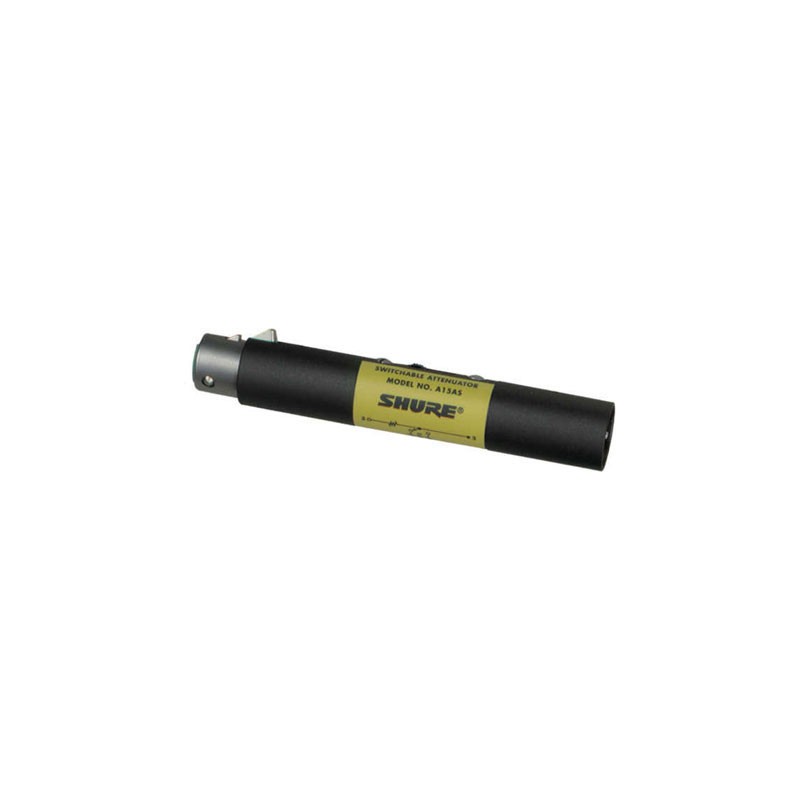

Shure A15AS In-line Switchable Attenuator

Share

The Shure A15AS Switchable In-Line Attenuator reduces the level of any balanced microphone or line-level signal by 15, 20, or 25 dB. It is specially suited to reducing the level of a high-output microphone to prevent it from overloading the microphone input of a mixer or recorder in applications with high sound pressure levels. In addition, the A15AS may be used to reduce the level of a line-level mixer output to prevent overloading the aux-level input of a recorder.

The A15AS is equipped with a female 3-pin XLR connector on the input side, and a male 3-pin XLR connector on the output side. Attenuation is controlled by a three-position slide switch. The A15AS allows phantom power to pass through from the mixer to the microphone, so it can be used with condenser microphones.

• Frequency Response: Flat, 20 to 20,000 Hz ± 0.5 dB
• Impedance:
  • Input (XLR Female): 1,000 ohms
  • Output (XLR Male): 150 ohms
• Attenuation (switch selectable): 15 dB, 20 dB, or 25 dB
• Case: Full magnetic shield; steel with gray enamel finish
• Dimensions (Diameter x Length): 3/4 in x 4 1/2 in | 19 x 114 mm
