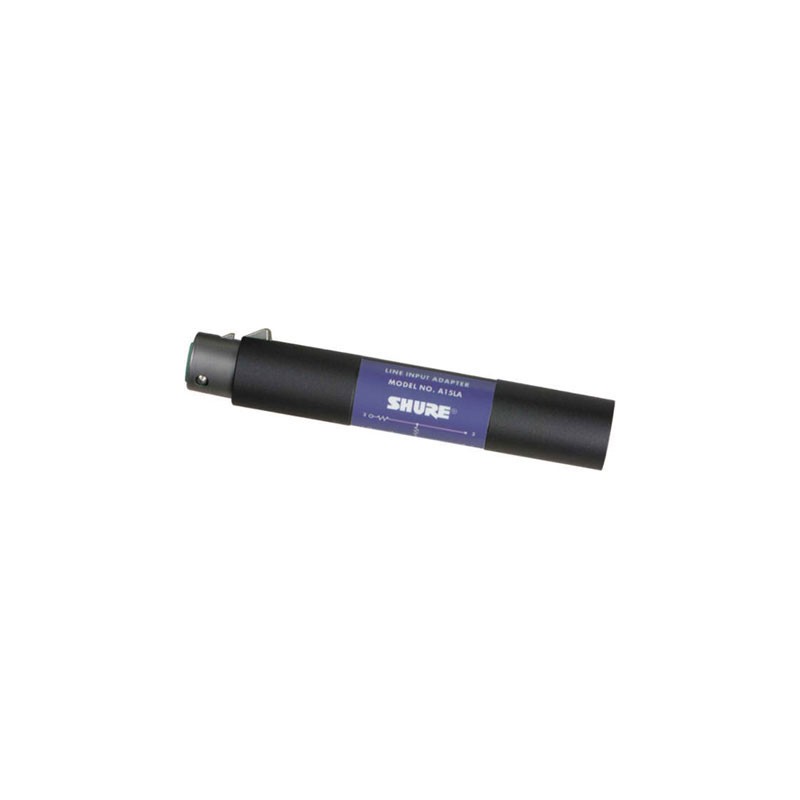

Shure A15LA 50 dB Attenuator

Share

The Shure A15LA 50 dB attenuator reduces the level of an audio signal by 50 dB. This allows a line level output such as an aux level output from a mixer or playback device, to be connected to a microphone input on another mixer or recorder. Female XLR to Male XLR. The A15LA can be used with either balanced or unbalanced sources.

• Frequency Response: Flat, 20 to 20,000 Hz ± 0.5 dB
• Impedance:
  • Input (XLR Female): 100 ohms
  • Output (XLR Male): 300 ohms
• Attenuation: 50 dB
• Maximum Input Signal Level: 40 dbV
• Connectors:
  • Input: 3-socket female XLR
  • Output: 3-pin male XLR
• Case: Full magnetic shield; steel with gray enamel finish
• Dimensions (Diameter x Length): 3/4 in x 4 1/2 in | 19 x 114 mm
