Shure SLXD15/DL4B-G58 Portable Digital Wireless Lavalier System

Share

NOTE: This Shure SLXD15/DL4B-G58 Portable Digital Wireless Lavalier System has the G58 frequency band (470 - 514 MHz).

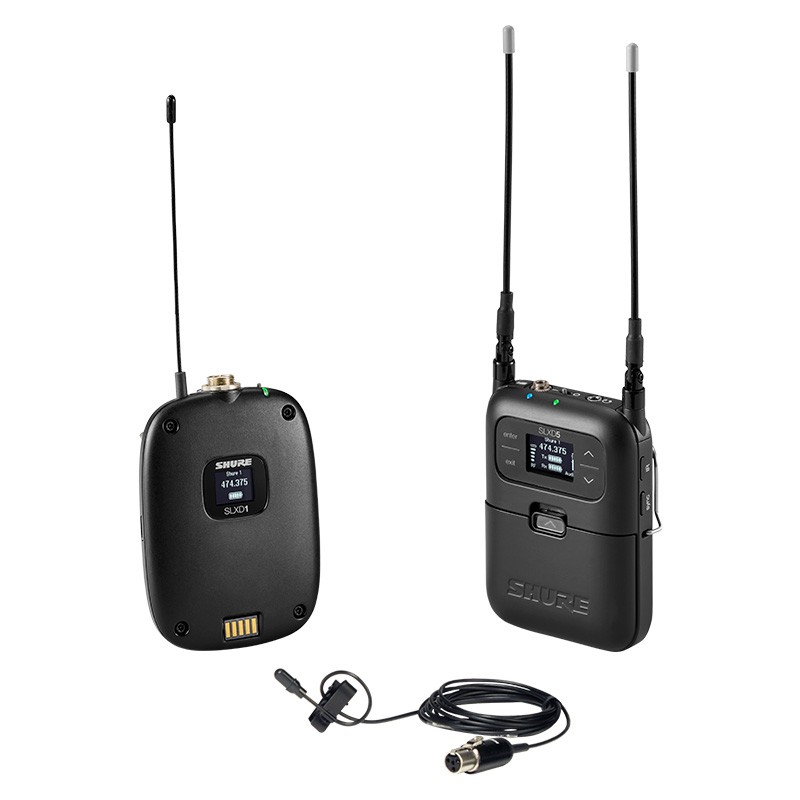

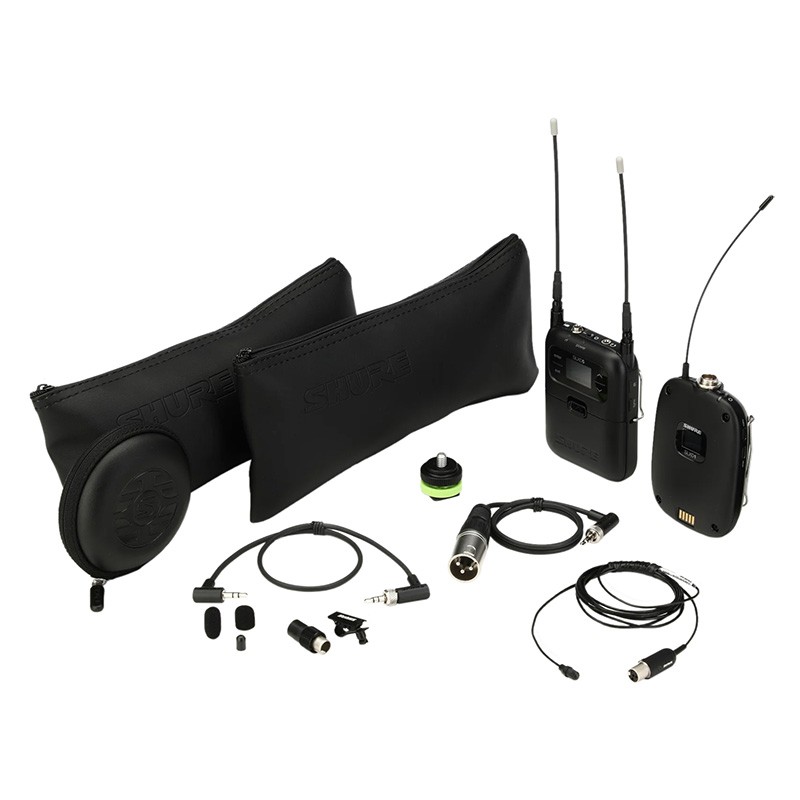

The Shure SLXD15/DL4B Portable Digital Wireless Systems includes the SLXD1 Bodypack Transmitter, SLXD5 Portable Receiver, DL4B DuraPlex Omnidirectional Lavalier in Black (with TA4F connector), camera shoe mount, windscreens, lapel clip, 3.5 mm TRS cable, AA batteries, and zippered carrying pouches.

The SLX-D1 Digital Wireless Bodypack Transmitter sends transparent, 24-bit digital audio to an SLXD4 or SLXD5 Digital Wireless receiver via rock-solid RF connection. As an integral component of SLX-D Digital Wireless Systems, the sleek bodypack is easily concealed on-talent or as a part of wardrobe and features IR Sync for easy pairing of the transmitter to your choice of receiver. The TA4F/TQG connector accepts a wide range of lavalier, instrument and headset microphones. Rechargeable Lithium-Ion batteries.

The SLXD5 Single-Channel Portable Digital Wireless Receiver packs the rich features of an SLXD Digital Wireless Receiver into a slim, portable package. Featuring pristine 24-bit digital audio clarity, efficient long-range UHF transmission and easy-to-use setup features, the SLXD5 is at home on top of your camera or in an audio bag. Scan and deploy frequencies to a compatible SLXD wireless transmitter with IR sync, or coordinate and monitor large channel configurations with many sources using Multi-Mic Mode.

The DuraPlex DL4B Omnidirectional Subminiature Waterproof Lavalier has been extensively tested to ensure an IP57 dust-resistant, waterproof rating. Whether shooting reality TV, mounting a professional theatrical tour, or wherever audio takes you, contending with the weather and other demands won’t slow you down with this waterproof microphone. As comfortable on the beach as it is in a broadcast studio, DuraPlex DL4 features a neutral, full sound quality that lives up to the highest audio standards. The advanced 1.6 mm Shure Plex cable, first introduced with the award-winning TwinPlex subminiature microphone, lasts longer than competing cables due to a dual redundant ground which doubles as a secondary shield. It won’t kink, is fully paintable, and also offers DL4 users virtually zero "memory effect."

• SLX-D Digital Wireless System:
  • RF:
    • RF Carrier Frequency Range: 470 - 514 MHz, G58 Band
    • Working Range: 328 ft | 100 m
      Note: Actual range depends on RF signal absorption, reflection and interference.
    • RF Tuning Step Size: 25 KHz
    • Image Rejection: > 70 dB, typical
    • Sensitivity: -97 dBm at 10^-5 BER
  • Audio:
    • Latency: 3.2 ms
    • High-Pass/Low Cut Filter 150 Hz, -12 dB/octave
      Note: factory default is for the HPF to be off
    • Audio Frequency Response: 20 Hz - 20 kHz (+1, -2 dB)
    • Audio Dynamic Range (A-weighted, 20 Hz - 20 kHz, typical): 118 dB @1% THD
    • Total Harmonic Distortion: < 0.02%
    • System Audio Polarity:
      • XLR: Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output
      • TRS: Postive pressure on microphone diaphragm produces positive voltage on the tip of the 6.35 mm (1/4-inch) with respect to the ring of the 6.35 mm output
    • Mic Offset Range: 0 to 21 dB (in 3 dB steps)
  • Temperature Range:
    • Operating: 0° to 122° F | -18° to 50° C
    • Storage: -20° to 165° F | -29° to 74° C
      Note: Battery characteristics may limit this range
• SLXD1 Digital Wireless Bodypack Transmitter:
  • Audio Input:
    • Connector: 4-pin male mini connector (TA4M)
    • Configuration: Unbalanced
    • Impedance: 1 MΩ
    • Maximum Input Level: 8.2 dBV (2.57 Vrms, 7.27 Vpp)
    • Preamplifier Equivalent Input Noise (EIN): -118 dBV
  • RF Output:
    • Antenna Type: 1/4 wave
    • Occupied Bandwidth: < 200 kHz
    • Modulation Type: Shure proprietary digital
    • Power: 1 mW / 10 mW; varies by region
  • Battery Type: Rechargeable Li-Ion or 1.5 V AA batteries
  • Housing: PC/ABS
  • Dimensions (H x W x D): 3.86 x 2.68 x 1 in | 98 x 68 x 25.5 mm
  • Weight: 3.1 oz | 89 g
• SLXD5 Digital Wireless Receiver:
  • RF Input:
    • Spurious Rejection: > 75 dB, typical
    • Impedance: 50 Ω
    • Phantom Power Protection: Yes
    • Antenna Type: 1/4 wave whip
  • Audio Output:
    • Audio Frequency Response: 20 Hz - 20 kHz (+1, -3 dB)
    • Connector: (2) 1/8" (3.5 mm)
    • Configuration:
      • Balanced (Mono): Tip = audio +, Ring = audio -, Sleeve = ground
      • Dual Mono: Tip = left, Ring = right, Sleeve = ground
    • Impedance (Camera):
      • Balanced (Mono) Line: 450 Ω
      • Balanced (Mono) Mic: 240 Ω
      • Dual Mono Line: 400 Ω
      • Dual Mono Mic: 200 Ω
    • Full Scale Output:
      • Camera (Balanced Line): 15 dBV
      • Headphone: 13 mW @ 64 Ω Load
  • General:
    • Power Requirements:
      • Battery: Rechargeable Li-Ion or 1.5 V AA batteries
      • Power Supply: SBC-DC-903 Battery Eliminator or 5 VDC via USB-C
    • Housing: Aluminum
    • Dimensions (H x W x D): 4.21 x 2.68 x 1.0 in | 107 x 68 x 25.3 mm
    • Weight: 6.4 oz | 182 g, without batteries
• DL4 DuraPlex Omni Lavalier:
  • Sound Field: Mono
  • Element Type: MEMS
  • Polar Pattern: Omnidirectional
  • Frequency Range: 20 Hz to 20 kHz
  • Maximum SPL: 132 dB SPL (1 kHz, 1% THD)
  • Sensitivity: - 42.5 dBV at 1 kHz
  • Dynamic Range: 101 dB
  • Signal-to-Noise Ratio: 63 dB
  • Output Connector: TA4F/Mini-XLR 4-Pin Female (Waterproof)
  • Cable Length: 66 in | 1.7 m
  • Power Sources: Plug-In Power
  • Operating Voltage: 5 V
  • Color: Black
  • Environmental Protection: Dust/Water-Resistant (IP57)
  • Dimensions (W x L): 0.2 x 0.6 in | 5.2 x 14.5 mm
  • Weight: 0.5 oz | 15 g
