Tentacle Sync TIMEBAR Multi-Purpose Timecode Display

Share

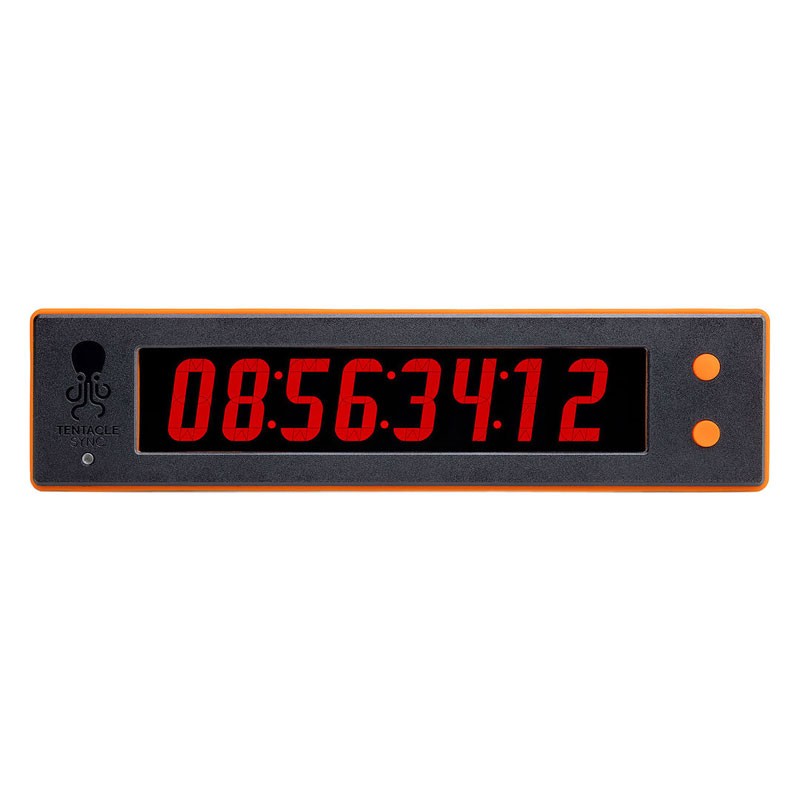

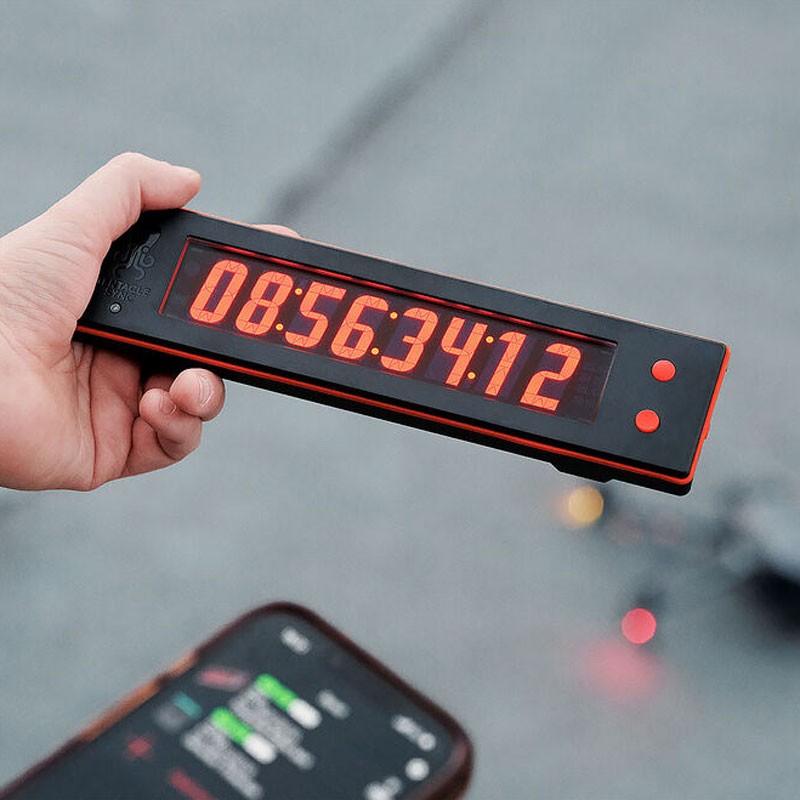

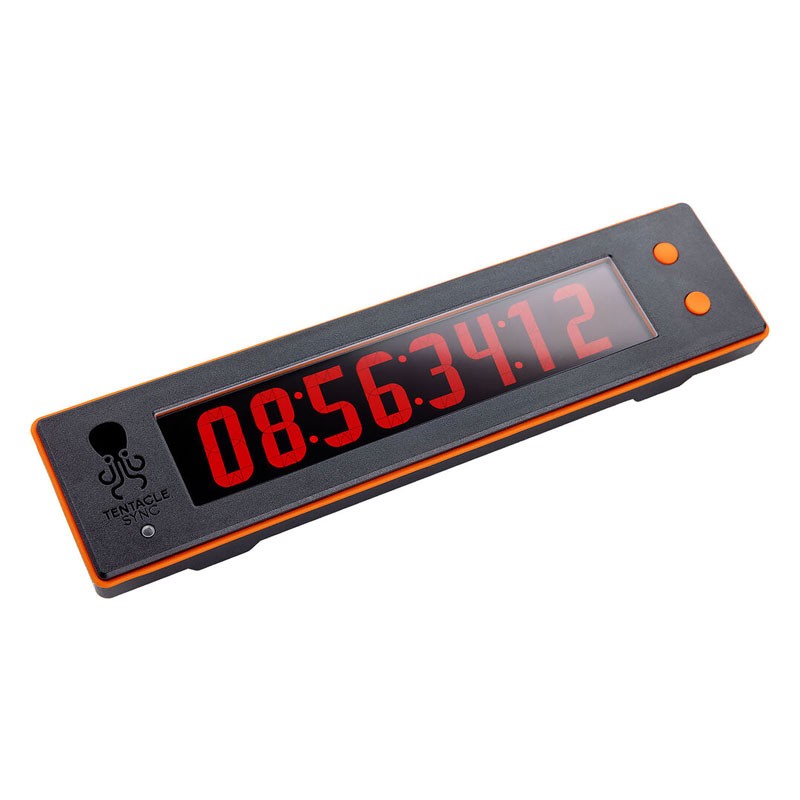

The TIMEBAR from Tentacle Sync combines multi-functionality with a high-contrast display. Equipped with OLED technology, the TIMEBAR features a unique alphanumeric design that ensures excellent readability making it suitable for use both in the studio and on set. It serves as a reliable timecode generator or as a timecode display for directors and the team.

The TIMEBAR can be used as a timer or stopwatch device for presenters and content creators. Its versatility extends to displaying text messages via Setup App, making it a true multi-tool among timecode displays. The OLED display not only provides high contrast, but also ensures low energy consumption, allowing the TIMEBAR to last throughout the entire day. To facilitate sustainable and long-term use, both the battery and the OLED display are easily replaceable.

The Tentacle TIMEBAR seamlessly integrates into the overall Tentacle workflow, allowing easy and intuitive operation through the familiar Setup App via Bluetooth. This ensures a smooth and efficient experience for users in various production scenarios.

Package includes:

(1) TIMEBAR Multi-Purpose Timecode Display
(1) 3.5 mm to BNC cable
(1) USB-A to USB-C cable
(1) Zipper bag
(1) Software license for Tentacle Sync Studio (macOS)

Tentacle Sync TIMEBAR - Features:

• High-contrast OLED Technology with a wide viewing angle
• Compact and lightweight
• Unique alphanumeric display design
• Typical battery runtime, 24 hours
• Control, sync operate all devices via Bluetooth
• Timecode generator with TC in & out

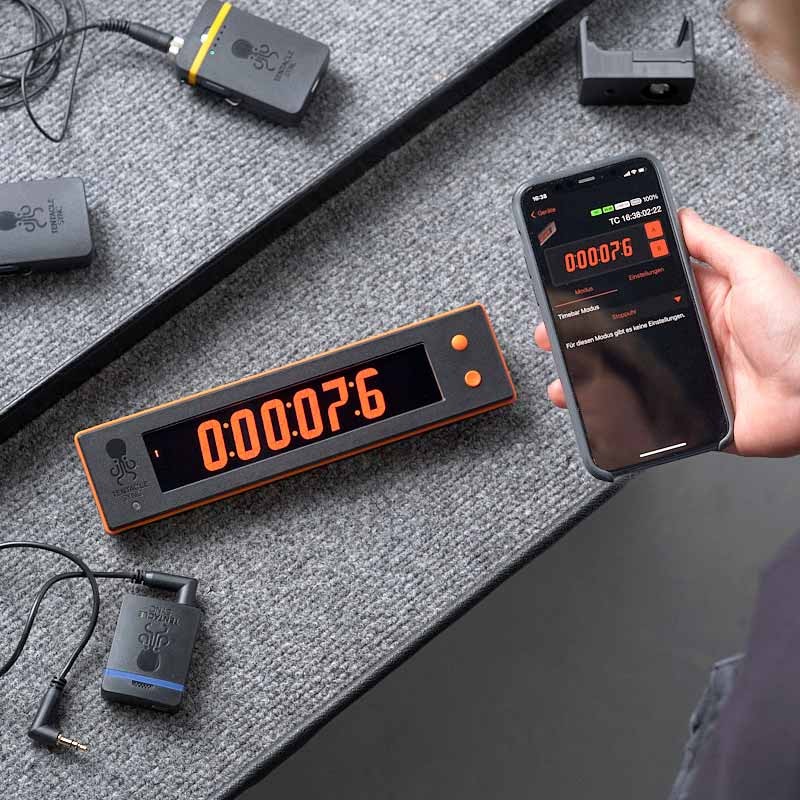

• Timer and stopwatch functionality
• Text display
• Limited 2-year warranty

TIMEBAR APP
Use this app to display timecode on full frame on your mobile device. The timecode is received by of one of your Tentacle SYNC E or TRACK E via Bluetooth.

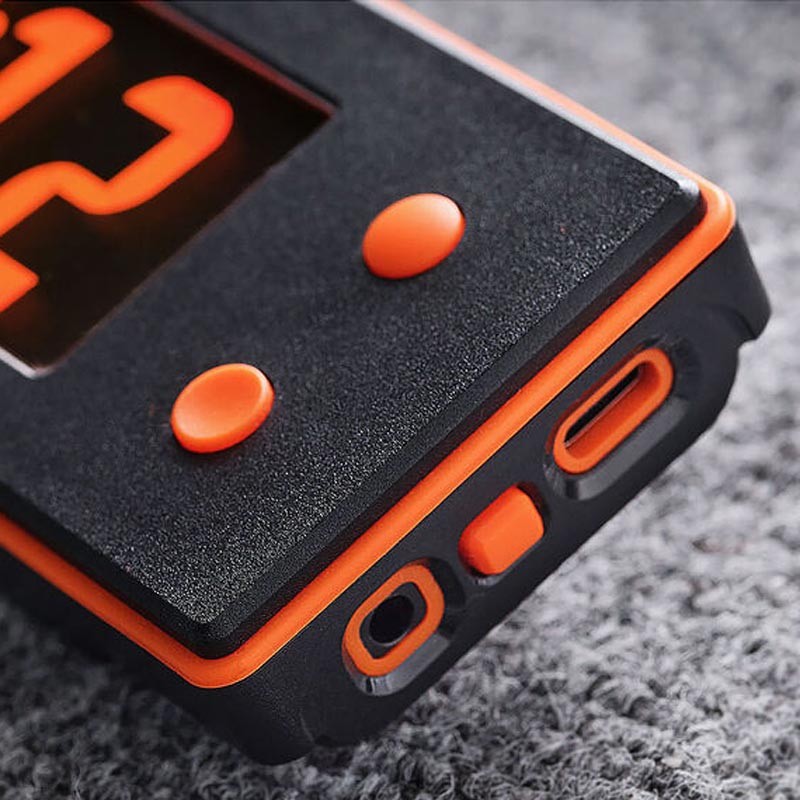

• Connectivity:
  • 3.5 mm Jack: Timecode In/Out
  • USB Connection: USB-C (USB 2.0)
  • USB Operating Modes: Charging, firmware update
• Control & Sync:
  • Bluetooth: 5.2 (low energy)
  • Remote Control: Tentacle Setup App (iOS/Android)
  • Synchronization: via Bluetooth (Tentacle Setup App) or Jam-Sync via cable
  • Timecode In/Out: LTC via 3.5 mm jack
  • Drift: High precision TCXO  (0.2 ppm) / accuracy less than 1 frame drift in 24 hrs (-22° to +185° F | -30° to +85° C)
  • Frame Rates: 23.98, 24, 25 (50), 29.97 (59.94), 29.97DF and 30 (60) fps
• Power:
  • Power Source: Built-in rechargeable lithium polymer battery
  • Battery Capacity: 2200 mAh
  • Battery Operation Time: 6 hours (highest brightness) to 80 hours (lowest brightness)
  • Battery Charging Time:
    • Standard Charge: 4 - 5 hours
    • Fast Charge: 2 hours
• Display Modes:
  • Timecode: Timecode / user bits
  • Timer: Countdown of three preset values (set different values in Setup App)
  • Stopwatch: Running time (keeps running in the background while operating in other modes)
  • Message: Text of three preset messages (edit messages in Setup App)

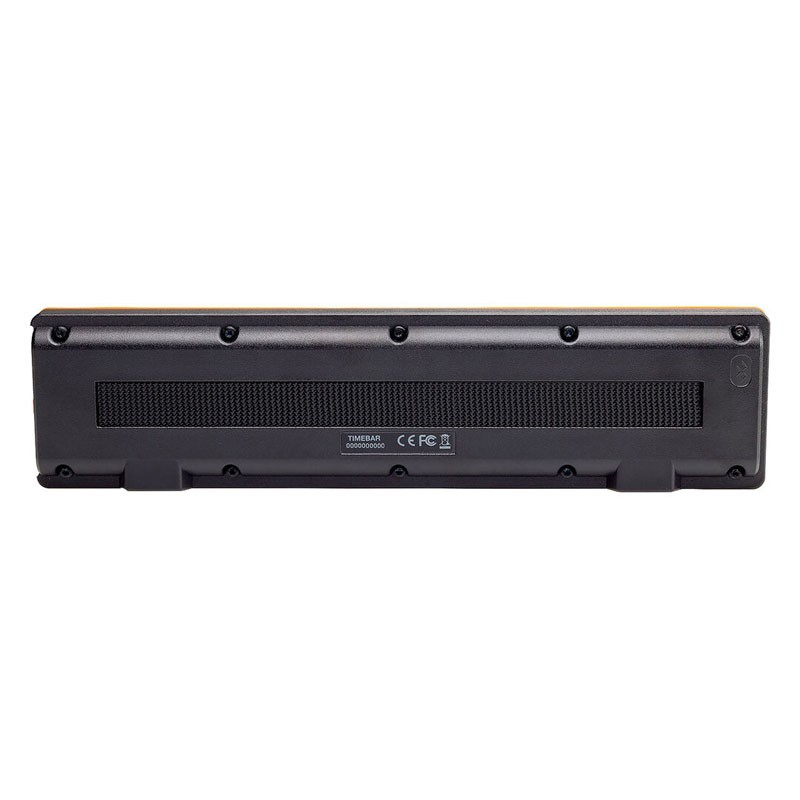

• Mounting Hardware: integrated hook surface on the back for easy mounting; other mounting options available separately
• Dimensions: 8.3 x 2.13 x 0.75 in | 211 x 54 x 19 mm
• Weight: 7.83 oz | 222 g
