ikan IKC-AS2H Advanced SDI to HDMI Converter

Share

The ikan IKC-AS2H, which features auto-detecting SD/HD/3GSDI, delivers field-tested reliability, solid construction, and all the features required for consistent professional performance.

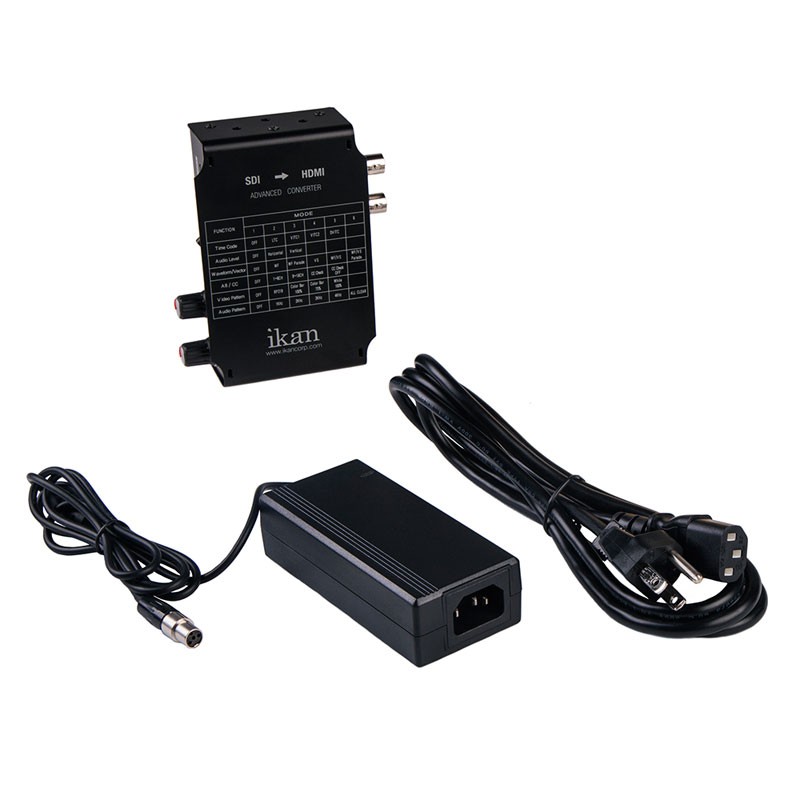

The IKC-AS2H supports 3G SDI (level A/B) and has video monitoring features such as waveform and vectorscope, a video test pattern generator, time code display, up to 8-ch HDMI embedded audio, and an audio test pattern generator. A 1/4"-20 threaded mounting point is on the bottom of the converter. Package includes an AC Adapter, CD Manual, SDI to HDMI Converter, and power cord.

ikan IKC-AS2H Features:

• Supports 3G SDI (Level A/B)
• Auto detects SD/HD/3G SDI
• Video Monitoring Features: Waveform
• (Single/Parade) and Vectorscope
• Video Test Pattern Generator: Color Bars and RP219
• Time code display (LTC, VITC1, VITC2, DVITC)
• Up to 8-channels of HDMI embedded audio
• Audio test pattern generator (1 to 4 kHz)
• De-embedded 2 to 16-channel audio level meters (horizontal/vertical)
• 1/4"-20 thread on bottom for mounting

• Video Outputs: 1 x SDI loop-through, 1 x HDMI (with HDCP v 1.1), 19-pin female
• Audio Output: external audio output (stereo 3.5 pi)
• Inputs: 1 x BNC (HD/SD-SDI,3G/1, 485G/270M)
• Power Consumption: 6W
• Power Requirements: 4DC (7V-24V) or AC Adapter (100 to 230V, 50 Hz/60 Hz)
• Dimensions: 4.6 x 3.9 x 1.4 in
• Weight: 0.8 lbs
