Wisycom MTP41S Wideband Bodypack Transmitter - B5 Band 1 (470 to 654 MHz)

Wisycom MTP41S Wideband Bodypack Transmitter - B5 Band 1 (470 to 654 MHz) Wisycom MTP41S Wideband Bodypack Transmitter - B5 Band 1 (470 to 654 MHz) Wisycom MTP41S Wideband Bodypack Transmitter - B5 Band 1 (470 to 654 MHz)
With $99 Purchase »
Your Price: $1,599.00
List Price: $1,777.00

Availability: Out of Stock
Quantity:
Manufacturer:

Sales SKU: WSYMTP41S-B5
Product Code: MTP41S B5

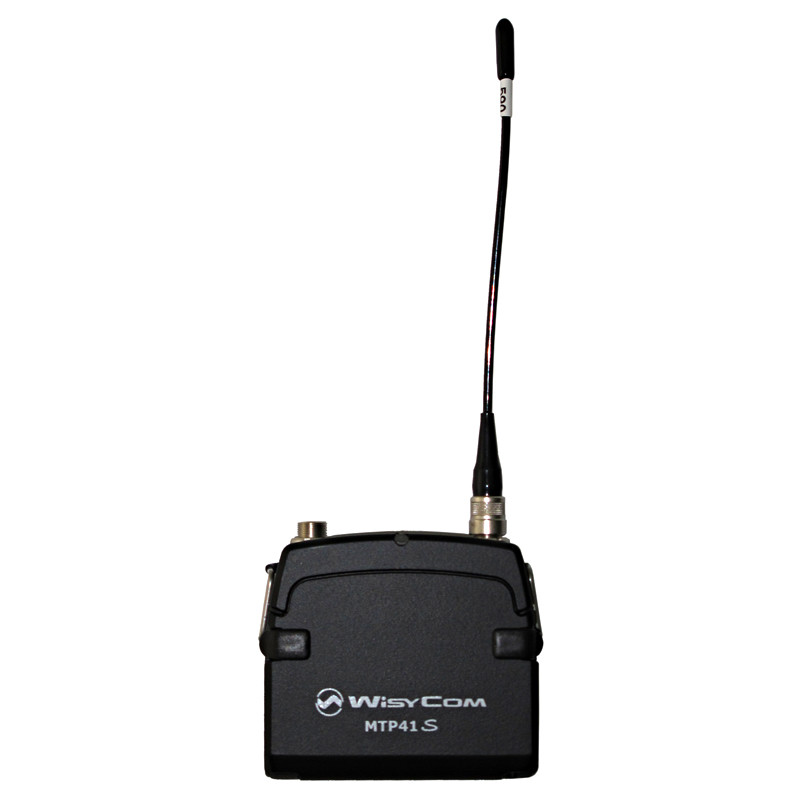

The Wisycom MTP41S is an extremely small and lightweight bodypack transmitter especially designed for professional wireless microphone applications. It is very easy to use thanks to an improved OLED display (128 x 32 pixels), dedicated buttons and a joggle selector. The MTP41S includes the latest Wisycom RF technology plus an enhanced robustness against noise and inter-modulation.

Wisycom MTP41S Transmitter - Features:

  • Up to 232 MHz bandwidth in 470/798 MHz range (others on request)
  • Input dynamic extension with an integrated HW limiter (30 dB above peak)
  • Enhanced robustness against self-interferences and antenna performances thru a proprietary "intermodulation cancellation" circuit
  • Miniature design with flexible pcb (no connectors) for extended reliability
  • Ultra-light metal alloy body (60g without battery)
  • User selectable multi-companding systems:
    ENR (noise-optimized)
    ENC (voice-optimized)
  • Battery: 1 AA Alkaline, rechargeable NiMH or Lithium
  • Autonomy:
    > 5h @ 50mW output power
    > 7h @ 10mW output power

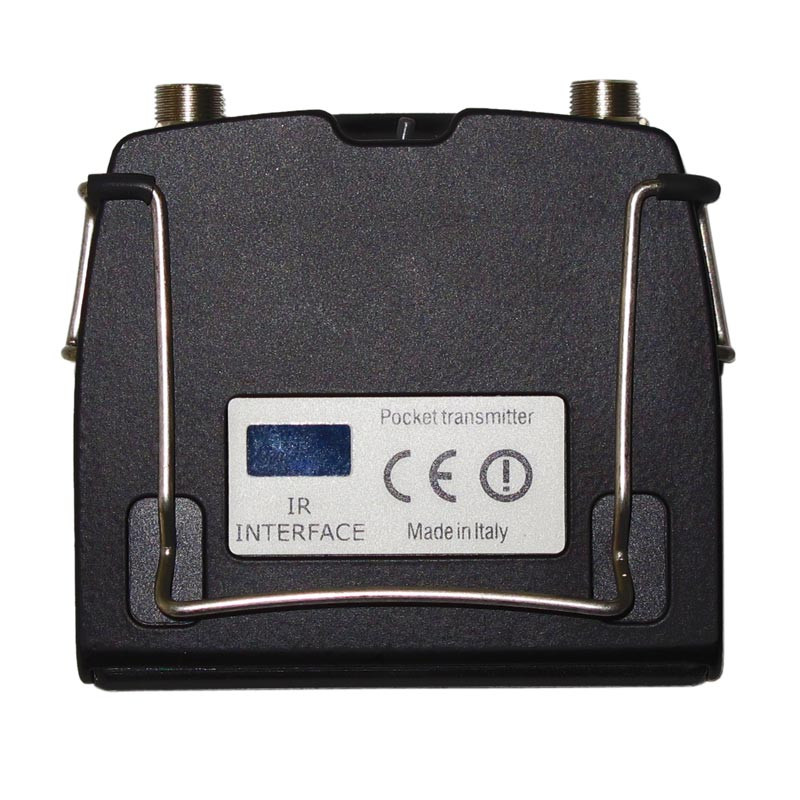

  • Infrared interface for management and firmware update
  • Easy and quick to setup thru an OLED display gain/freq button and a joggle selector
  • Extended regulation on Mic input gain: 80 dB in 1 dB step
  • Max input level 26 dBu (15.5 V clipping) to connect directly to mixers and instruments

NOTE: This MTP41S transmitter is for the B5 Band 1 (470 to 654 MHz) option and in a Black finish. For a different option, please call to place a special order.

  • Frequency Range: B5 Option (470 to 654 MHz)
  • Switchable Channels: 2400 managed in 40 groups of 60 frequencies completely user customizable
  • Switching-Window: Up to 232 MHz, depending on band (see Variants below)
  • Frequencies: Quartz PLL frequency synthesizer circuit (25 kHz step)
  • Frequency Error: ± 2.5 ppm, in the rated temperature range
  • RF Power: switchable typ. 10 mW / 50 mW
  • Modulation: Wideband FM, with pre-emphasis
  • Nominal Deviation: ± 40 kHz
  • Peak Deviation: ± 56 kHz
  • Spurious Emissions: < 2 nW
  • Telemetry Feature: TX transmits also a digitally modulated sub-carrier, suitable for tone-squelch operating, remote battery monitoring, and optional PTT (push to talk) operation
  • Noise Reduction System:
    • ENR (Wisycom Extended-NR), with independent Attack- and Recovery-time, noise optimized
    • ENC (Wisycom Extended-NC), with independent Attack- and Recovery-time, voice optimized and with reduced pre-emphasys
  • AF Bandwidth:
    • 45 Hz - 21 KHz (3dB)
    • 55 Hz - 20 KHz (1dB)
  • Distortion: < 0.3 % (0.15 % typ.)
  • SND/D Ratio (Analog):
    • typ. 115 dB (A)rms with 40kHz deviation
    • typ. 121 dB (A)rms with 56kHz deviation
  • Audio Input Connector:
    • LEMO connector configurable on 'mic' display menu in 3 options:
      • 2 wires: gain selectable -60 to +40 (-54 dBu to +26 dBu peak), no bias voltage
      • 2 wires + bias: gain selectable -60 to +40 (-54 dBu to + 6 dBu peak), 5.5 V on 4k7 bias supply
      • 3 wires: gain selectable -60 to +40 (-54 dBu to +26 dBu peak)
  • Audio Input Level: 100 dB adjustable range from -54 dBu (775 uV) to 46 dBu (15.5 V) at peak deviation (1 kHz), adjustable in 1 dB steps
  • Max. Input Level: +46 dBu (15.5 V) at clipping, +20 dBu (7.75 V) at nominal level
  • Managing Interface: IrDA
  • LED: RGB led indication with (red, green and blue) on wireless power switch:
    • Wireless transmission status: GREEN on/RED off
    • Battery lifetime status: GREEN steady (> 25%), slowly blinking (< 25%), quickly blinking (<12%)
    • Modulation peek (if activated & the limiter is disabled): RED
    • PTT status: RED if active
    • Limiter into action: Blue
  • 8-Step Battery Lifetime Indication: 7 bars (100%-87%-75%-63-50%-38%-25%) and "empty bar" quickly blinking (12% remaining)
  • PTT Function: Pin 3 of the AF connector can be setup to an external push button
  • Display: High contrast OLED (Organic light-emitting diode) white display (128 x 32 pixels)

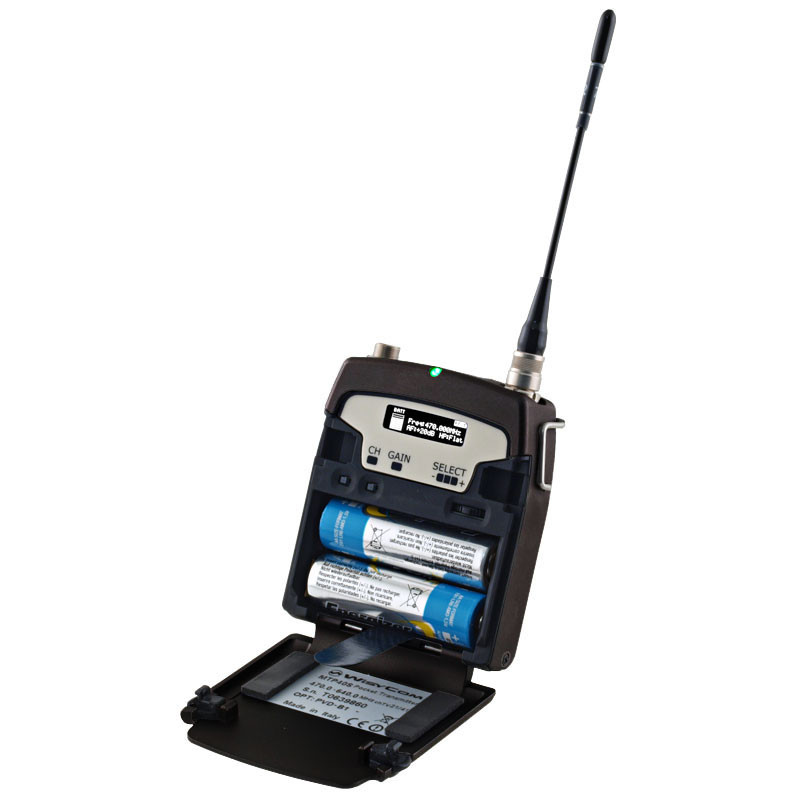

  • Power Supply: (1) AA size cell (Alkaline, rechargeable NiMH or Lithium)
  • Battery Life:
    • approx. 11 hours @ 50mW continuous working with Lithium
    • approx. 8 hours @ 50mW continuous working with NiMH
    • approx. 4.5 hours @ 50mW continuous working with Alkaline
  • Temperature Range: 14 to +131° F | -10 to +55° C
  • Dimensions (H x W x D): 2.3 x 2.5 x .85 in | 58.2 x 64.5 x 21.7 mm, with clip
  • Weight: Approx. 85g without battery (120g with)
